Q 0,75/3FL/9-9KU-ESA BK
Weight
0.017 kg
This product is Not Cancellable/Not Returnable
Series Q
Q 0,75/3FL/9-9KU-ESA BK - Panel feed-through

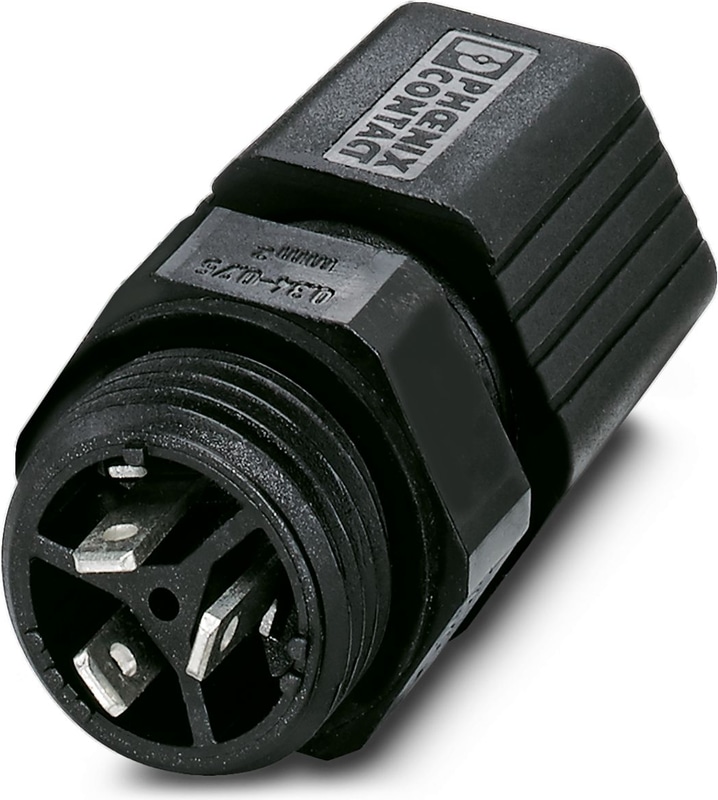

QUICKON panel feed-through, for external wall mounting with manual solder/slip-on connection, 2.8 x 0.8 mm, 3-pos.
Technical Specifications
Product properties
| Number of Positions | 3 |
| Number of Connections | 3 |
Connection technology
| Connection method On the device side | Manual solder/slip on connection |
| Frequency of connections between conductors of the same cross section | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
Conductor connection
| Conductor cross section flexibel | 0.34 mm² ... 0.75 mm² |
| Conductor cross section solid | 0.34 mm² ... 0.75 mm² |
| Tightening torque Union nut | 2.5 Nm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque Locking nut | 3.75 Nm |
| Wrench size Union nut | 19 mm |
| Wrench size Contact carrier | 19 mm |
Electrical properties
| Rated voltage (III/3) | 160 V (with insulating sleeve) |
| Nominal current IN | 9 A |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
| Contact Material | Cu alloy |
| Contact surface material | Pre-nickel plated and tin-plated |
| Contact carrier material | PA |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm |
| Wire diameter including insulation | 2.5 mm |
Mounting
| Mounting Type | Pg9 |
| Assembly instructions | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.) |
| Ambient Temperature (Operation) | -25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) |
