Q 0,75/4FL/11-M20KU-ESA BK - Panel feed-through

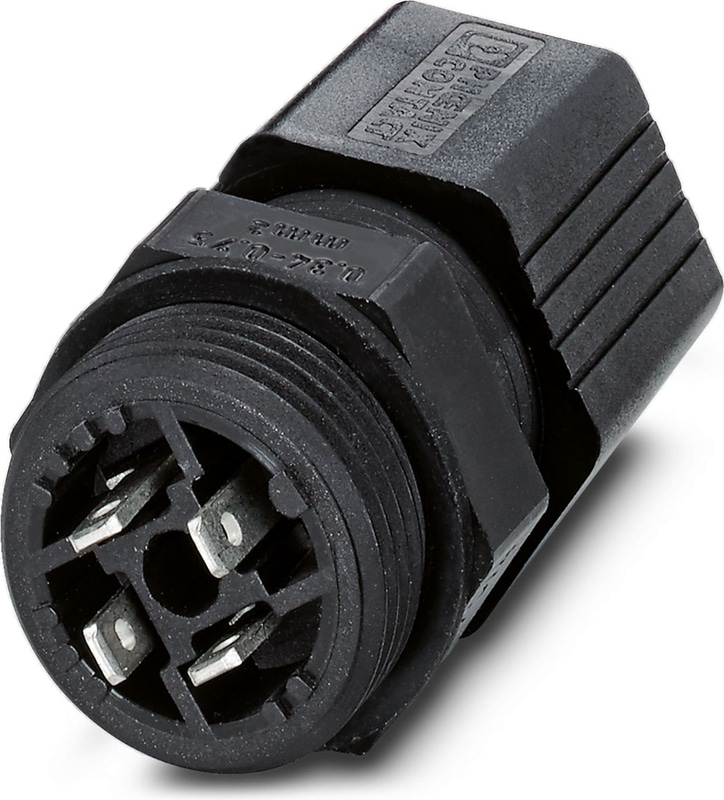

QUICKON panel feed-through, for external wall mounting with manual solder/slip-on connection, 2.8 x 0.8 mm. 4-pos.
Technical Specifications
Product properties
| Number of Positions | 4 |
| Position marking | 1, 2, 3, 4 |
| Number of Connections | 4 |
| No. of cable outlets | 0 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection method On the device side | Manual solder/slip on connection |
| Connection method On the field side | IDC connection |
| Frequency of connections between conductors of the same cross section | max. 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
Conductor connection
| Conductor cross section flexibel | 0.34 mm² ... 0.75 mm² |
| Conductor cross section solid | 0.75 mm² ... 1 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque Union nut | 2.5 Nm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque Locking nut | 3.75 Nm |
| Wrench size Union nut | 22 mm |
| Wrench size Contact carrier | 22 mm |
Dimensions
| Width | 22 mm |
| Height | 22 mm |
| Length | 42.3 mm |
Electrical properties
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 9 A |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 320 V (with insulating sleeve) |
| Rated voltage (III/2) | 160 V (with insulating sleeve) |
| Rated voltage (III/3) | 160 V (with insulating sleeve) |
| Nominal voltage UN | 160 V AC |
| Nominal voltage UN | 160 V DC |
| Nominal current IN | 9 A |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | CuZn |
| Material Contact surface | tin-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| External Cable Diameter | 6 mm ... 8 mm |
| Wire diameter including insulation | 2.5 mm |
| Position marking | 1, 2, 3, 4 |
| Material wire insulation | PVC / PE |
Mounting
| Mounting Type | Front mounting M20 |
| Assembly instructions | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.) |
| Ambient Temperature (Operation) | -25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) |
| Temperature when conductor connected | -5 °C ... 50 °C (specifications of the cable manufacturer must also be observed) |
Accessories
MICROFOX-SB - Electronic diagonal cutter, round head, without chamfer, with opening spring, mirror-polished and oiled, 2-component grip, cutting capacity: soft 0.2 - 2.0 mm; medium hard 1.2 mm; hard 0.5 mm diameter
PT/FS 2,8 - Insulating sleeve, as touch protection, slide onto the conductor before for 2.8 slip-on sleeves
