1640977
Official DistributorSKU
PHX1640977
MPN
Q 0,75/4A50/11-11KU-ESA
Weight
0.045 kg
Series Q
Q 0,75/4A50/11-11KU-ESA - Panel feed-through

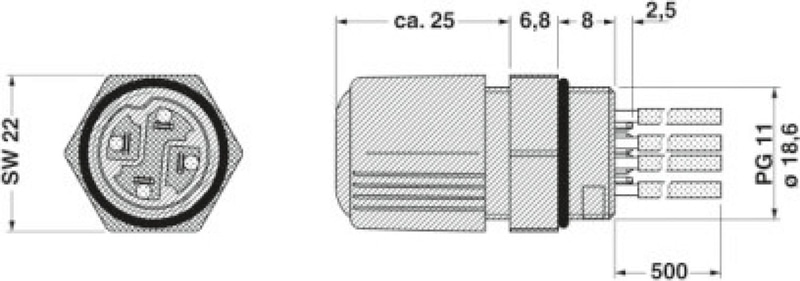

QUICKON panel feed-through, for the outside panel assembly with 0.5 m long wires, 4-pos.
Technical Specifications
Product properties
| Number of Positions | 4 |
| Connection profile | 4 |
| Position marking | 1, 2, 3, 4 |
| Number of Connections | 4 |
| Shielded | no |
Insulation characteristics
| Degree of pollution | 3 |
Connection technology
| Connection method On the device side | Single wires |
| Frequency of connections between conductors of the same cross section | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
Conductor connection
| Conductor cross section flexibel | 0.34 mm² ... 0.75 mm² |
| Connection cross section AWG | 18 ... 16 |
| Tightening torque Union nut | 2.5 Nm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque Locking nut | 3.75 Nm |
| Wrench size Union nut | 22 mm |
| Wrench size Contact carrier | 22 mm |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 | BN |
| Contact | Color (signal designation) | Contact (optional) | 2 | WH |
| Contact | Color (signal designation) | Contact (optional) | 3 | BU |
| Contact | Color (signal designation) | Contact (optional) | 4 | BK |
Dimensions
| Width | 24 mm |
| Height | 24 mm |
| Length | 43.7 mm |
Electrical properties
| Rated surge voltage (III/3) | 4 kV |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 320 V (with insulating sleeve) |
| Rated voltage (III/2) | 160 V (with insulating sleeve) |
| Rated voltage (III/3) | 160 V (with insulating sleeve) |
| Nominal voltage UN | 160 V |
| Nominal current IN | 9 A |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Material Housing | PA |
| Material Contact | Cu alloy |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC / PE |
| Contact surface material | Pre-nickel plated and tin-plated |
Cable/line
| Cable Length | 0.5 m |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm |
| Wire diameter including insulation | 2.5 mm |
| Position marking | 1, 2, 3, 4 |
| Cable cross section | 0.75 mm² |
Mounting
| Mounting Type | Front mounting Pg11 |
| Assembly instructions | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 80 °C (Specifications of the cable manufacturer must be observed.) |
| Ambient Temperature (Operation) | -25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) |
