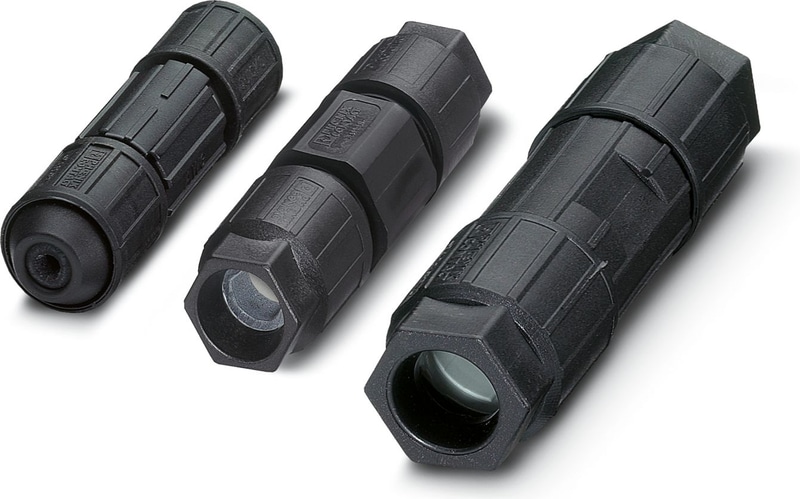

Q 0,75/4IDC/18-18KU-KU BK - Conductor connector
Conductor connector, connection method: IDC connection, 0.34 mm2 ... 0.75 mm2, 250 V, 9 A, PA, black, coding: no, external cable diameter: 4 mm ... 8 mm
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection
Technical Specifications
Product properties
| Number of Positions | 4 |
| Position marking | 1, 2, 3, 4 |
| Number of Connections | 4 |
| Number of connections per position | 1 |
| Coding | no |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 15 mm |
| Height | 15 mm |
| Length | 67.5 mm |
| Diameter | 15 mm |
Connection technology
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Tightening torque | 1.2 Nm |
| Tightening torque Union nut | 1.2 Nm |
| Wrench size Union nut | 15 mm |
| Wrench size Contact carrier | 15 mm |
Electrical properties
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 9 A |
| Contact resistance | ≤ 5 mΩ |
| Rated voltage (II/2) | 500 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (III/3) | 250 V |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 400 V AC |
| Nominal voltage UN | 400 V DC |
| Nominal current IN | 9 A |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Steel |
| Material Contact surface | tin-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| External Cable Diameter | 4 mm ... 8 mm |
| Wire diameter including insulation | 1.3 mm ... 2.6 mm |
| Position marking | 1, 2, 3, 4 |
| Material wire insulation | PVC / PE |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Accessories
MICROFOX-SB - Electronic diagonal cutter, round head, without chamfer, with opening spring, mirror-polished and oiled, 2-component grip, cutting capacity: soft 0.2 - 2.0 mm; medium hard 1.2 mm; hard 0.5 mm diameter
