Phoenix Contact 1602290

1602290

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1602290
MPN
DC-B 6-SET-3D-M20-M-7X4-UT
Weight
0.862 kg
This product is Not Cancellable/Not Returnable
Series DC-B

DC-B 6-SET-3D-M20-M-7X4-UT - Connector set

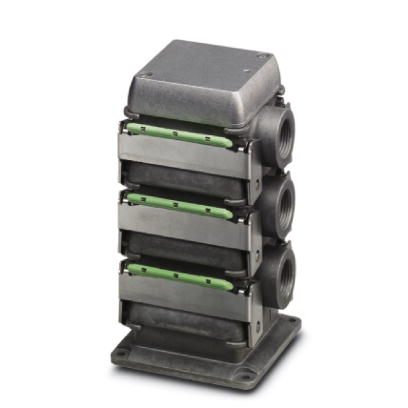

Duplicon, aluminum distributor set with a basic housing (enclosed bottom), with three stackable housings with M20 cable screw connection threads (without cable screw connections), with three contact inserts 6 x 4 mm2 + PE, 400/690 V, 25 A, screw connection and a housing cover, type B6, IP67 protection

Technical Specifications

Dimensions

Height151 mm

Ambient conditions

Degree of ProtectionIP65/IP66/IP67
Ambient Temperature (Operation)-40 °C ... 100 °C

Electrical characteristics

Rated voltage (III/3)400 V (L-PE)
Rated voltage (III/3)690 V (L-L)
Rated surge voltage6 kV
Rated current25 A (with 4 mm² conductor cross section)
Maximum Load Current32 A (L1/L2/L3)
Overvoltage categoryIII
Degree of pollution3

Material data

Contact MaterialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Housing MaterialAluminum die-cast
Housing surface materialuncoated
Seal materialNBR
Locking latch materialStainless steel
Material grip body interlockPA

General

TypeDC-B6
Colorpearl gray
Insertion/withdrawal cycles≥ 100
Number of Positions6
Stripping length of the individual wire10 mm
Conductor Cross Section0.2 mm² ... 4 mm² (6 mm² without ferrule)
Connection cross section AWG24 ... 12 (AWG 10 without ferrule)
Tightening torque0.5 Nm ... 0.6 Nm
Pg screw connectionnone
Type of the screw connectionwith M20 thread
Cable outletlateral

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Accessories
  • Phoenix Contact3040588
    3040588
    PC - Coding star, 4-section, depth: 6 mm, width: 3 mm, height: 3 mm, color: red
  • Phoenix Contact1602326
    1602326
    DC-B 6-A-HD-G, DUPLICON, profile gasket for stackable housing, made of conductive EPDM
  • Phoenix Contact1602313
    1602313
    DC-B 6-A-SA - DUPLICON, mounting bracket, made of 3 mm high-grade steel plate, with predrilled holes
  • Phoenix Contact1602410
    1602410
    T20-M4X12 - M4 Torx head screw T20, 12 mm long, self tapping, consisting of high-strength steel, anti-corrosive
  • Phoenix Contact1581078
    1581078
    DC-B 6-CT-P, DUPLICON snap-on dust protection cover, polyamide (can be coated)
  • Phoenix Contact0201155
    0201155
    EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
  • Phoenix Contact1645846
    1645846
    Screw plug - HC-M-BS-M20
  • Phoenix Contact1411189
    1411189
    G-INSEC-M20-S68N-NCRS-S - Cable gland, material for screw connection: Brass, nickel-plated, application: EMC, external cable diameter 9 mm ... 13 mm, shielding: yes, connecting thread: M20 x 1.5, color: silver, with O-ring
  • Phoenix Contact1645998
    1645998
    HC-M-KV-M20(11-16) - Metal screw connection up to 5 bar, thread length: 6 mm, cable diameter: 11 - 16 mm, WAF 27, screw connection: M20
  • Phoenix Contact1411163
    1411163
    G-INS-M20-S68N-NNES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 6 mm ... 12 mm, shielding: no, connecting thread: M20 x 1.5, color: silver, with O-ring
