Phoenix Contact 1602274

1602274

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1602274
MPN
DC-B 6-SET-CO-M20-M-7X4-UT
Weight
0.619 kg
This product is Not Cancellable/Not Returnable
Series DC-B

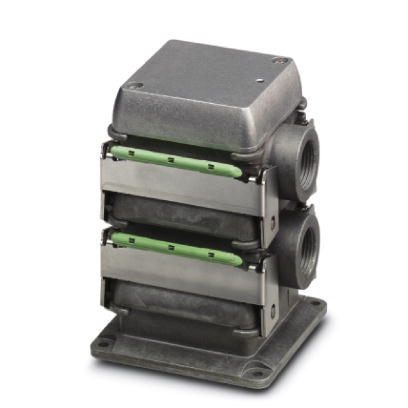

DC-B 6-SET-CO-M20-M-7X4-UT - Connector set

Duplicon, aluminum coupling set with a basic housing (enclosed bottom), with two stackable housings with M20 cable screw connection threads (without cable screw connections), with two contact inserts 6 x 4 mm2 + PE, 400/690 V, 25 A, screw connection and a housing cover, type B6, IP67 protection

Documents

Technical Specifications

Product properties

Housing typeCoupling set
TypeDC-B6
Number of Positions6
No. of cable outlets2
Type of the screw connectionwith M20 thread
Seal presentyes
Cable outletlateral
Pg screw connectionnone

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Maximum Load Current32 A (L1/L2/L3)
Rated voltage (II/2)1000 V
Rated voltage (III/2)1000 V
Rated voltage (III/3)400 V (L-PE)
Rated voltage (III/3)690 V (L-L)
Rated voltage (III/3)630 V
Rated surge voltage (II/2)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (III/3)6 kV
Rated surge voltage6 kV
Rated current25 A (with 4 mm² conductor cross section)
Rated current25 A
Contact resistance1.5 mΩ
Nominal current IN25 A

Connection data

Connection MethodScrew connection
Connection technologyScrew connection
Conductor Cross Section0.2 mm² ... 4 mm² (6 mm² without ferrule)
Conductor Cross Section0.2 mm² ... 4 mm² (6 mm² without ferrule)
Connection cross section AWG24 ... 12 (AWG 10 without ferrule)
Tightening torque0.5 Nm ... 0.6 Nm
Stripping length of the individual wire10 mm

Dimensions

Width75 mm
Height115 mm
Length89 mm

Material specifications

Colorpearl gray
Material HousingDie-cast aluminum
Flammability rating according to UL 94V0
Seal materialNBR
Housing MaterialDie-cast aluminum
Contact MaterialCopper alloy
Contact surface materialAg
Contact carrier materialPA
Locking latch materialStainless steel

Cable/line

Stripping length of the individual wire10 mm

Mechanical data

Type of the screw connectionwith M20 thread
Locking TypeLatch
Insertion/withdrawal cycles≥ 100

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP66
Degree of ProtectionIP67
Degree of ProtectionIP65/IP66/IP67
Impact strengthIK08
Ambient Temperature (Operation)-40 °C ... 100 °C

Mounting

Mounting TypeScrew mounting
Accessories
  • Phoenix Contact3040588
    3040588
    PC - Coding star, 4-section, depth: 6 mm, width: 3 mm, height: 3 mm, color: red
  • Phoenix Contact1602326
    1602326
    DC-B 6-A-HD-G, DUPLICON, profile gasket for stackable housing, made of conductive EPDM
  • Phoenix Contact1602313
    1602313
    DC-B 6-A-SA - DUPLICON, mounting bracket, made of 3 mm high-grade steel plate, with predrilled holes
  • Phoenix Contact1602410
    1602410
    T20-M4X12 - M4 Torx head screw T20, 12 mm long, self tapping, consisting of high-strength steel, anti-corrosive
  • Phoenix Contact1581078
    1581078
    DC-B 6-CT-P, DUPLICON snap-on dust protection cover, polyamide (can be coated)
  • Phoenix Contact0201155
    0201155
    EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
  • Phoenix Contact1645846
    1645846
    Screw plug - HC-M-BS-M20
  • Phoenix Contact1411189
    1411189
    G-INSEC-M20-S68N-NCRS-S - Cable gland, material for screw connection: Brass, nickel-plated, application: EMC, external cable diameter 9 mm ... 13 mm, shielding: yes, connecting thread: M20 x 1.5, color: silver, with O-ring
  • Phoenix Contact1645998
    1645998
    HC-M-KV-M20(11-16) - Metal screw connection up to 5 bar, thread length: 6 mm, cable diameter: 11 - 16 mm, WAF 27, screw connection: M20
  • Phoenix Contact1411163
    1411163
    G-INS-M20-S68N-NNES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 6 mm ... 12 mm, shielding: no, connecting thread: M20 x 1.5, color: silver, with O-ring
