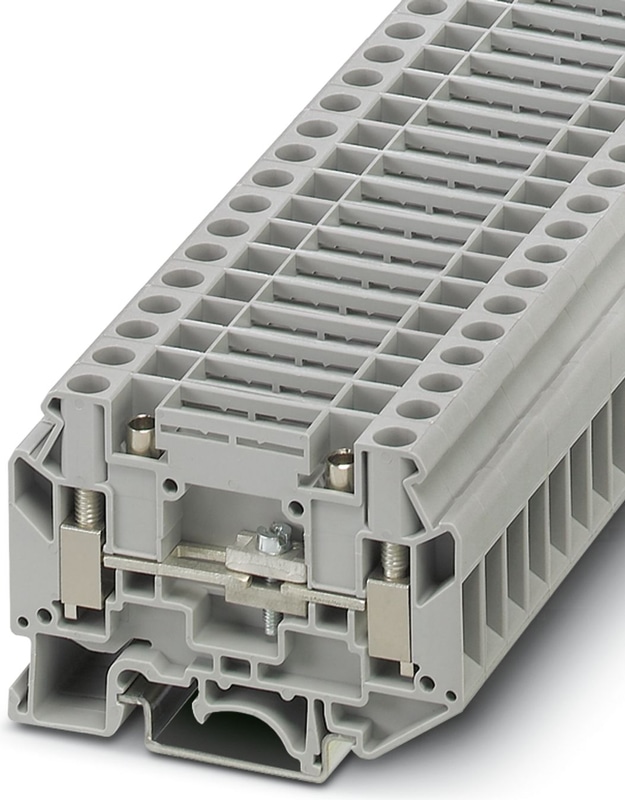

UK 6-T-P - Disconnect terminal block

Disconnect terminal block, nom. voltage: 500 V, nominal current: 41 A, connection method: Screw connection, 1 level, Rated cross section: 6 mm2, cross section: 0.5 mm2 - 10 mm2 , mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Product properties

Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.31 W

Connection data

Number of connections per level	2
Nominal cross section	6 mm²
Test socket torque	0.6

1 level

Screw thread	M4
Tightening torque	1.5 ... 1.6 Nm
Stripping length	10 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 10 mm²
Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 6 mm²
2 conductors with same cross section, solid	0.5 mm² ... 2.5 mm²
2 conductors with same cross section, flexible	0.5 mm² ... 4 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.5 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 4 mm²
Nominal Current	41 A
Maximum Load Current	57 A (with 10 mm² conductor cross section)
Nominal Voltage	500 V
Nominal cross section	6 mm²

Dimensions

Width	8.2 mm
End cover width	2.2 mm
Height	66.5 mm
Depth on NS 32	53 mm
Depth on NS 35/7,5	48 mm
Depth on NS 35/15	55.5 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
Mounting Type	NS 32
Screw thread	M3

3072802
D-UK 6-T - End cover, depth: 37.9 mm, width: 2.2 mm, height: 66.5 mm, color: gray
0311540
Short-circuit connector - KSS 8
3000722
Short-circuit connector - KSSI 2-8
3000735
Short-circuit connector - KSSI 4-8
1205066
Screwdriver - SZS 1,0X4,0 VDE
1205053
Screwdriver - SZS 0,6X3,5
5022643
AP 3 METER - Cover profile, for covering terminal strips, snaps onto cover profile carrier AP 3-TU, AP 3-TNS 35, can be marked with insert strip AP-ES. Cover profile carriers should be placed at the ends and at intervals of approx. 40 cm. Length: 1 m
5022656
AP 3-TU - Cover profile carrier for mounting on NS 32 or NS 35/7.5 DIN rail for attaching the cover profile AP 3.2 mm thick
5022672
AP 3-TNS 35 - Sealable cover profile, for mounting on NS 35/7.5 DIN rail and for fixing the cover profile AP 3, with plastic knurled nut M5, space requirement: 13 mm
3035761
Switching lock - SL-SB
3072820
TS-UK 6-T - Separating plate, depth: 62.5 mm, width: 1 mm, height: 66.5 mm, color: gray
3245134
Screw bridge - SCBI 10-8,15
3000417
SCBI 10-8,15 ISO, Isolator bridge bar, for switchable cross bridges, with insulating collar, pitch: 8.2 mm, number of positions: 10, color: silver
3075842
Switching jumper - SB 6-T 2-8
3075843
Switching jumper - SB 6-T 3-8
3075844
Switching jumper - SB 6-T 4-8
3075846
Switching jumper - SB 6-T 10-8
3070321
Switching jumper - SBP 6-T 2-8
3070322
Switching jumper - SBP 6-T 3-8
3070323
Switching jumper - SBP 6-T 4-8
0202154
EB 2- 8 - Insertion bridge, pitch: 8 mm, number of positions: 2, color: gray
0202141
EB 3- 8 - Insertion bridge, pitch: 8 mm, number of positions: 3, color: gray
0202142
EB 4- 8 - Insertion bridge, pitch: 8 mm, number of positions: 4, color: gray
0202138
EB 10- 8 - Insertion bridge, pitch: 8 mm, number of positions: 10, color: gray
3075845
SB 1/3/5/7-8-T
3072340
EB 1/3/5/7-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 4, pin assignment: 1, 3, 5, 7, length: 24 mm, color: gray
3072341
EB 1/3/5-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 3, pin assignment: 1,3,5, length: 24 mm, color: gray
1201002
NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
1201015
NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
0801733
NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0801681
NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1204119
NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1204122
NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
0801704
NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206421
DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206434
NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, Standard profile, color: silver
0801762
NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206560
NS 35/ 7,5 CAP - DIN rail end piece, for DIN rail NS 35/7.5
1201730
NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
1201714
NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
0806602
NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
1204135
NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
1201756
NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
1206599
NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1206586
NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
1201895
NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
1206573
NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
1201798
NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
1052002
Zack marker strip - ZB 8:UNBEDRUCKT
0818072
Marker for terminal blocks - UC-TM 8
0828740
Marker for terminal blocks - UCT-TM 8
1052015
1052015 -
1052028
1052028 -
1052413
1052413 -
3022218
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
3022276
CLIPFIX 35-5 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
0800886
E/NS 35 N - End clamp, width: 9.5 mm, color: gray
1201442
E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
1201413
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
3070316
Female test connector - PSBJ 6-T GY
3070317
Female test connector - PSBJ 6-T BN
3070318
Female test connector - PSBJ 6-T BK
3070319
Female test connector - PSBJ 6-T RD
3070320
Female test connector - PSBJ 6-T OG
3070326
Female test connector - PSBJ 6-T YE
3070327
Female test connector - PSBJ 6-T GN
3070328
Female test connector - PSBJ 6-T VT
3070329
Female test connector - PSBJ 6-T BU
