Name: 3070320
Brand: Phoenix Contact
SKU: PHX3070320
Price: 4.9800 CAD
Availability: BackOrder

Color

Height

Length

Width

Pin diameter

Screw thread

Material

Tightening torque, min

Tightening torque max

Operating Temperature

Ambient temperature (storage/transport)

Permissible humidity (storage/transport)

Ambient temperature (assembly)

Ambient temperature (actuation)

REACh SVHC

China RoHS

Request replacement

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>SZF 1-0,6X3,5 - Screwdriver</h3><p>Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip</p><ul><li>In addition to its standard application, this screwdriver is also ideal for actuating ST ... and QTC ... modular terminal blocks</li></ul>

1204517

1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip

<h3>SF-SL 0,6X3,5-100 S-VDE - Screwdriver</h3><p>Actuation tool, for ST terminal blocks, VDE insulated, with slimmer insulation integrated in the blade, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip</p><ul><li>In addition to standard applications, SF‑SL ... screwdrivers are particularly suitable for modular terminal block assembly</li><li>Because the insulation runs into the shaft, there is no protruding edge</li><li>VDE-tested, for maximum safety</li></ul>

1212587

1212587 - Actuation tool, for ST terminal blocks, VDE insulated, with slimmer insulation integrated in the blade, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip

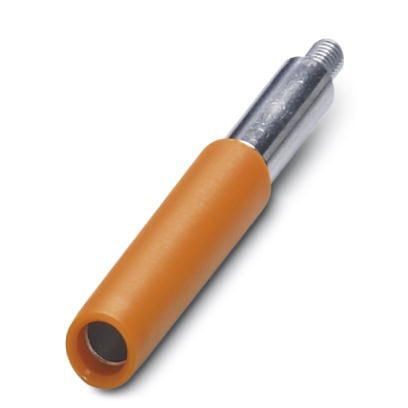

<h3>Female test connector - PSBJ 6-T OG</h3><p>Female test connector, color: orange</p>

3070320

Female test connector - PSBJ 6-T OG

General

Dimensions

Ambient conditions

Environmental Product Compliance

Why Proax for Phoenix Contact 3070320?

Height	15 mm
Length	6 mm
Width	6 mm
Pin diameter	4 mm
Screw thread	M3

Material	Brass
Tightening torque, min	0.5 Nm
Tightening torque max	0.6 Nm

Operating Temperature	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50 years
China RoHS	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
