Official DistributorBy ABB
SKU
MPN
1SVR011732R1300
Weight
0.101 kg

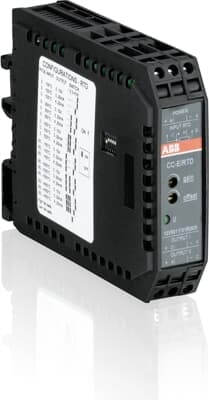

The CC-E RTD/I is a single-function temperature signal converter from the CC-E range. This converter, with 3-way electrical isolation, for RTD sensors (PT100, 2- or 3-wire connection), operates with a rated control supply voltage of 24 V DC. It provides an input temperature range of 0…100 °C and an output signal range of 4-20 mA. Applied supply voltage is displayed by a green LED.
Documents
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Height | 75 mm |
| Product Net Weight | 0.086 kg |
Technical
| Function | RTD sensor signals |
| Function | Single-function |
| Output signal | 4 ... 20 mA |
| Power Loss | Approximately 2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | EN 50178 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-4 |
| Standards | UL 508 |
| Sub-Function | Single-function |
Why Proax for ABB CC-E RTD/I?
Proax is an authorized distributor of ABB CC-E RTD/I and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CCERTDI |
| Pack Size | 1 |
