Buy ABB 1SVR010203R0500 CC-E IAC/ILPO

Official Distributor

By ABB

SKU

MPN

1SVR010203R0500

Weight

0.052 kg

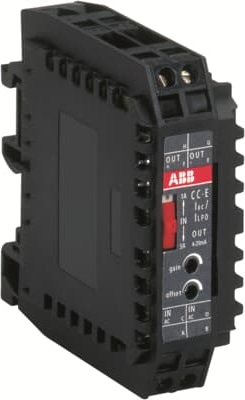

The CC-E IAC/ILPO is a current measuring converter from the CC-E range. This converter, with 3-way electrical isolation, for sinusoidal currents, operates without any auxiliary power. It provides 2 input current signal ranges (0-1 A, 0-5 A, AC), selectable by a front-face sliding switch, and an output signal range of 4-20 mA. The adjustment of the gain and the offset is made via potentiometers on the front of the unit.

Technical Specifications

Supplier Information - USINY

Lead Time	21 day
Made to Order	No
Product Sales Status	Active
Quote Only	No
Stocked At Warehouses	USSVCEXPU
Warranty Return	Product under warranty must be returned

Dimensions

Product Net Width	18 mm
Product Net Depth / Length	63 mm
Product Net Height	62.5 mm
Product Net Weight	0.052 kg

Technical

Function	Current Measuring
Function	Single-function
Output signal	4 ... 20 mA
Power Loss	Approximately 2 W
Standards	CAN/CSA C22.2 No.14
Standards	EN 50178
Standards	IEC/EN 63000
Standards	IEC/EN 61000-6-2
Standards	IEC/EN 61000-6-4
Standards	UL 508
Sub-Function	Single-function
