Official DistributorBy ABB
SKU
MPN
1SVR011700R0000
Weight
0.109 kg

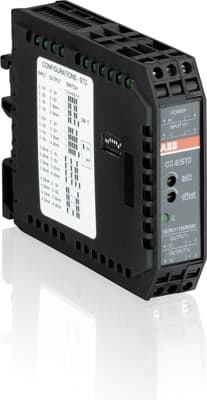

The CC-E/STD is an universal standard analog signal converter from the CC-E range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 24 V DC. The 4 input signal ranges (0-5 V, 0-10 V, 0-20 mA, 4-0 mA) and the 4 output signal ranges (0-5 V, 0-0 V, 0-20 mA, 4-20 mA) can be configured by means of directly accessible lateral DIP switches. The adjustment of the gain and the offset is made via potentiometers on the front of the unit. Applied supply voltage is displayed by a green LED.
Documents
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Height | 75 mm |
| Product Net Weight | 0.088 kg |
Technical
| Function | Standard signals |
| Function | Multifunction |
| Output signal | 0.5 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA |
| Power Loss | Approximately 2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | CAN/CSA C22.2 No.213 |
| Standards | EN 50178 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-4 |
| Standards | UL 1604 |
| Standards | UL 508 |
| Sub-Function | Multifunction |
Why Proax for ABB CC-E/STD?
Proax is an authorized distributor of ABB CC-E/STD and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CCESTD |
| Pack Size | 1 |
