CC-U/STDR
Official DistributorBy ABB
SKU
ABB1SVR040011R2500
MPN
1SVR040011R2500
Weight
0.142 kg

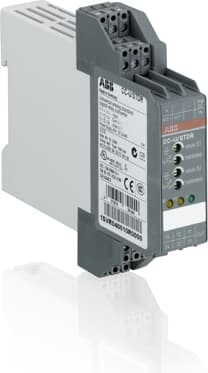

The CC-U/STDR is a standard analog signal converter from the CC-U range. This converter, with relay outputs and with 3-way electrical isolation, operates with a rated control supply voltage of 110-240 V AC and provides pluggable connecting terminals. 7 input signal ranges as well as open- or closed-circuit operating principle can be configured by means of directly accessible lateral DIP switches. This converter has 2 threshold relay outputs with one c/o (SPDT) contact each. The threshold values and the respective hysteresis can be adjusted independently from each other with front-face potentiometers. Applied supply voltage is displayed by a green LED and two yellow LEDs display the state of the output relays.
Documents
Technical Specifications
Supplier Information - AUABB004
| Country or Territory of Origin | Australia |
| Lead Time | 42 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AUABB004EXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Height | 105 mm |
| Product Net Weight | 0.142 kg |
Technical
| Function | Standard signals |
| Function | Universal |
| Output | 2c/o |
| Output signal | 2 c/o (SPDT) contacts |
| Power Loss | Approximately 2 W |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | EN 50178 |
| Standards | IEC/EN 63000 |
| Standards | IEC/EN 60947-5-1 |
| Standards | IEC/EN 61000-6-2 |
| Standards | UL 508 |
| Sub-Function | Universal |
Why Proax for ABB CC-U/STDR?
Proax is an authorized distributor of ABB CC-U/STDR and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CCUSTDR |
| Pack Size | 1 |
