Name: 3076426
Brand: Phoenix Contact
SKU: PHX3076426

Official Distributor

By Phoenix Contact

SKU

MPN

UKH 150-3L/FE

Weight

1.481 kg

Series UKH

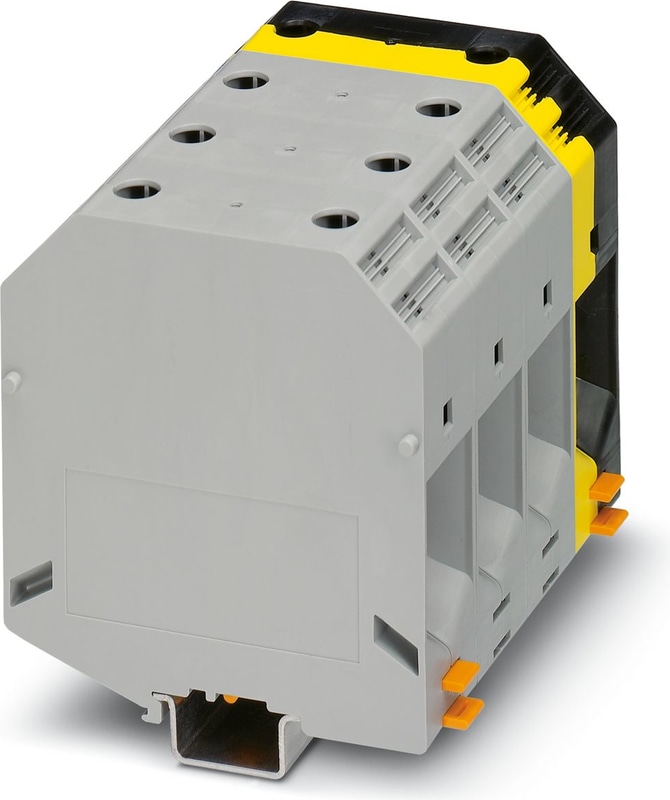

UKH 150-3L/FE - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 309 A, number of connections: 8, number of positions: 4, connection method: Screw connection, Rated cross section: 150 mm2, cross section: 35 mm2 - 150 mm2, mounting type: NS 35/15, NS 32, color: gray/black-yellow

Product properties

Number of Positions	4
Number of Connections	8
Number of rows	1
Potentials	4

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage

8 kV

Connection data

Number of connections per level	8
Nominal cross section	150 mm²

Level 1 above 1 below 1

Screw thread	M10
Note	Screws with hexagonal socket
Tightening torque	25 ... 30 Nm
Stripping length	40 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	35 mm² ... 150 mm²
Cross section AWG	2 ... 300 kcmil (converted acc. to IEC)
Conductor cross section flexible	50 mm² ... 150 mm²
Conductor cross section, flexible [AWG]	1/0 ... 300 kcmil (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	50 mm² ... 150 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	50 mm² ... 150 mm²
Cross-section with insertion bridge, rigid	150 mm²
Cross-section with insertion bridge, flexible	120 mm²
2 conductors with same cross section, solid	25 mm² ... 50 mm²
2 conductors with same cross section, flexible	35 mm² ... 50 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	25 mm² ... 50 mm²
Nominal Current	309 A
Maximum Load Current	309 A (with 150 mm² conductor cross section)
Nominal Voltage	1000 V
Note	Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section	150 mm²

Dimensions

Width	124 mm
Height	110.9 mm

Material specifications

Color	gray/black-yellow
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type	NS 35/15
Mounting Type	NS 32
