Name: 3247065
Brand: Phoenix Contact
SKU: PHX3247065

for direct mounting

Official Distributor

By Phoenix Contact

SKU

MPN

UKH 150-F BU

Weight

0.397 kg

Series UKH

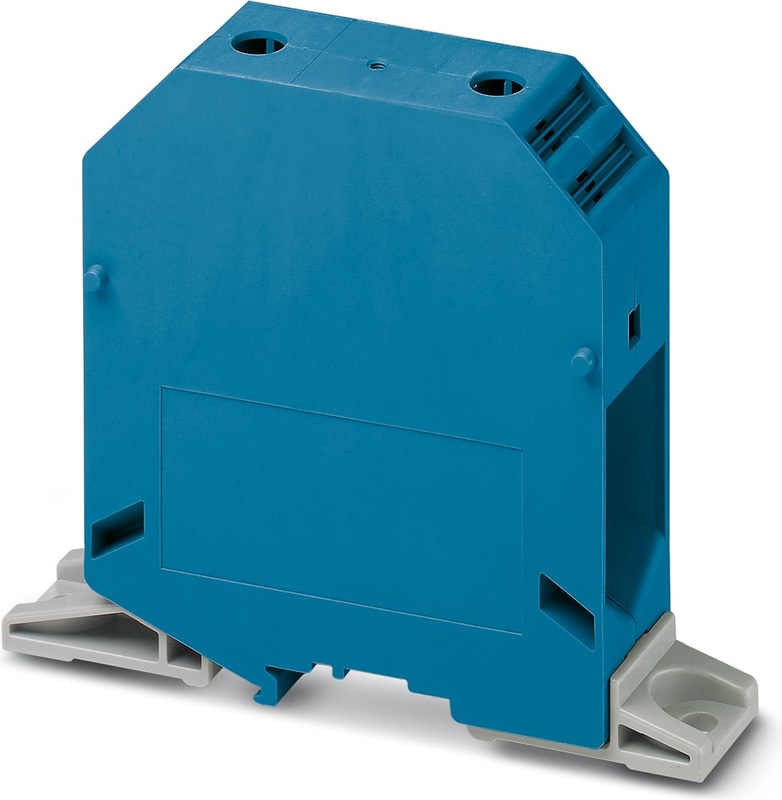

UKH 150-F BU - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 150 mm2, cross section: 35 mm2 - 150 mm2, mounting type: direct screw connection, color: blue

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part

Product properties

Number of Positions	1
Number of Connections	2
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	9.55 W

Connection data

Number of connections per level	2
Nominal cross section	150 mm²
Screw thread	M10
Note	Screws with hexagonal socket
Tightening torque	25 ... 30 Nm
Stripping length	40 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	35 mm² ... 150 mm²
Cross section AWG	1/0 ... 250 kcmil (converted acc. to IEC)
Conductor cross section flexible	50 mm² ... 150 mm²
Conductor cross section, flexible [AWG]	1/0 ... 250 kcmil (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	50 mm² ... 150 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	50 mm² ... 150 mm²
Cross-section with insertion bridge, rigid	150 mm²
Cross-section with insertion bridge, flexible	120 mm²
2 conductors with same cross section, solid	25 mm² ... 50 mm²
2 conductors with same cross section, flexible	35 mm² ... 50 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	25 mm² ... 50 mm²
Nominal Current	309 A
Maximum Load Current	309 A (with 150 mm² conductor cross section)
Nominal Voltage	1000 V
Note	Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section	150 mm²

Rated data (ATEX/IECEx)

Identification	 II 2 GD Ex eb IIC Gb
Operating temperature range	-60 °C ... 110 °C
Ex-certified accessories	1201947 VDE-ISS 8
List of bridges	Insertion bridge / EB 2-31/UKH / 0201388
List of bridges	Insertion bridge / EB 3-31/UKH / 0201391
Bridge data	195.5 A / 150 mm²
Ex temperature increase	40 K (281.5 A / 150 mm²)
Rated voltage	1100 V
at bridging with insertion bridge	880 V
Rated Insulation Voltage	1000 V
Output	(Permanent)

Ex level General

Rated current	256 A
Maximum Load Current	256 A
Contact resistance	0.06 mΩ

Ex connection data General

Torque range	25 Nm ... 30 Nm
Nominal cross section	150 mm²
Rated cross section AWG	300 kcmil
Connection capacity rigid	35 mm² ... 150 mm²
Connection capacity AWG	2 ... 300 kcmil
Connection capacity flexible	50 mm² ... 150 mm²
Connection capacity AWG	1/0 ... 300 kcmil
2 conductors with same cross section, solid	25 mm² ... 50 mm²
2 conductors with the same cross-section AWG rigid	4 ... 1/0
2 conductors with same cross section, stranded	35 mm² ... 50 mm²
2 conductors with the same cross-section AWG flexible	2 ... 1/0

Dimensions

Width	31 mm
Height	136.1 mm
Depth	111 mm
Hole diameter	6.5 mm

Material specifications

Color	blue
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test

Result

Test passed

Temperature-rise test

Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 150 mm²	18 kA
Result	Test passed

Power-frequency withstand voltage

Test voltage setpoint	2.2 kV
Result	Test passed

Mechanical data

Open side panel

Mechanical strength

Result

Test passed

Attachment on the carrier

DIN rail/fixing support	NS 32/NS 35
Result	Test passed

Test for conductor damage and slackening

Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	35 mm² / 6.8 kg
Conductor cross section/weight	50 mm² / 9.5 kg
Conductor cross section/weight	150 mm² / 15 kg
Result	Test passed

Needle-flame test

Time of exposure	30 s
Result	Test passed

Oscillation/broadband noise

Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Service life test category 2, bogie-mounted
Frequency	f1 = 5 Hz to f2 = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed

Shocks

Specification	DIN EN 50155 (VDE 0115-200):2018-05
Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC 60947-7-1

Mounting

Mounting Type

direct screw connection

1004513
Warning label - WS-2K
3009244
UKH 150/240 EP - Insertion profile, color: silver
3003554
Pick-off terminal block - AGK 10-UKH 150/240
1201947
VDE-ISS 8, Allen wrench, fully insulated, safety tool in accordance with EN 60900, length: 200 mm, handle width: 110 mm, for all terminal blocks with 10 mm Allen screw
1004513
Warning label - WS-2K
1004584
WS-4K - Adhesive warning plate, self-adhesive, black print: lightning flash with mixed verson - "Vorsicht Spannung - Attention Danger" size of label: 13 x 23.5 mm
0201391
Insertion bridge, pitch: 31 mm, number of positions: 3, color: gray
0201388
EB 2-31/UKH - Insertion bridge, pitch: 31 mm, number of positions: 2, color: gray
0811862
Zack marker strip - ZB 22:UNBEDRUCKT
0811875
Zack marker strip - ZB 22,LGS:L1-N,PE
0816210
Marker for terminal blocks - TMT 10 R
0802751
Zack marker strip - ZB 25:UNPRINTED
