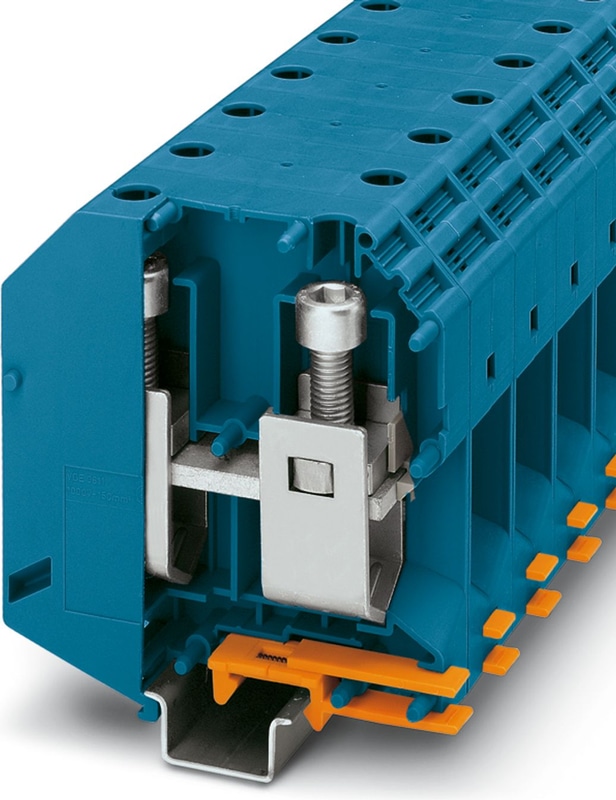

Phoenix Contact 3247434
AllConnectorsTerminal blocksScrew connection

3247434

Official Distributor

By Phoenix Contact

SKU
PHX3247434
MPN
UKH 150 1500V BU
Weight
0.377 kg
Series UKH

UKH 150 1500V BU - High-current terminal block

High-current terminal block, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 150 mm2, cross section: 35 mm2 - 150 mm2, mounting type: NS 35/15, NS 32, color: blue

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Screw locking by means of spring-loaded elements in the clamping part
  • Low contact resistance of the contact surface due to ribbing
Technical Specifications

General

NoteFor a reliable contact of multi stranded conductors it is recommended to untwist multi stranded conductors.

Product properties

Number of Positions1
Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition9.55 W

Connection data

Number of connections per level2
Nominal cross section150 mm²

Level 1 above 1 below 1

Screw threadM10
NoteScrews with hexagonal socket
Tightening torque25 ... 30 Nm
Stripping length40 mm
Internal cylindrical gageB14
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid35 mm² ... 150 mm²
Cross section AWG1/0 ... 250 kcmil (converted acc. to IEC)
Conductor cross section flexible50 mm² ... 150 mm²
Conductor cross section, flexible [AWG]1/0 ... 250 kcmil (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)50 mm² ... 150 mm²
Flexible conductor cross section (ferrule with plastic sleeve)50 mm² ... 150 mm²
Cross-section with insertion bridge, rigid150 mm²
Cross-section with insertion bridge, flexible120 mm²
2 conductors with same cross section, solid25 mm² ... 50 mm²
2 conductors with same cross section, flexible35 mm² ... 50 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve25 mm² ... 50 mm²
Nominal Current309 A
Maximum Load Current309 A (with 150 mm² conductor cross section)
Nominal Voltage1500 V
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section150 mm²

Dimensions

Width31 mm
Height100 mm
Depth107.3 mm
Depth on NS 32116 mm
Depth on NS 35/15118.5 mm

Material specifications

Colorblue
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

ResultTest passed
Short-time withstand current 150 mm²18 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint3.82 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 32/NS 35
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight35 mm² / 6.8 kg
Conductor cross section/weight50 mm² / 9.5 kg
Conductor cross section/weight150 mm² / 15 kg
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1

Mounting

Mounting TypeNS 35/15
Mounting TypeNS 32
