FL SWITCH SMN 6TX/2FX
Weight
0.855 kg
This product is Not Cancellable/Not Returnable
Series FL-SWITCH-SMN

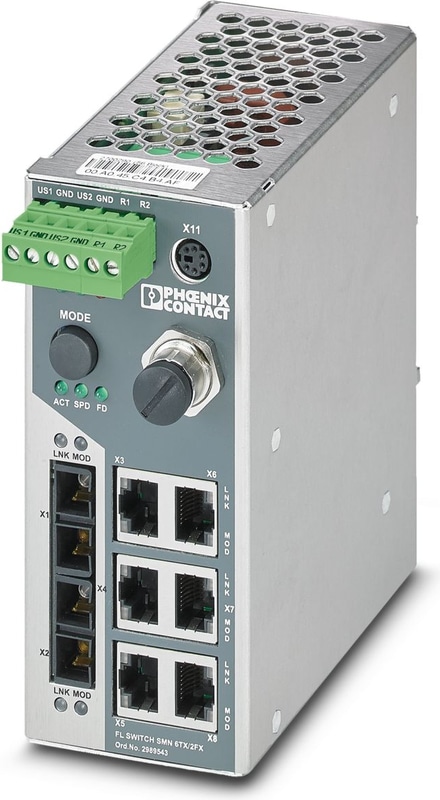

FL SWITCH SMN 6TX/2FX - Industrial Ethernet Switch
Smart Managed Narrow Switch (SMN) with six 10/100 Mbps RJ45 ports and two 100 Mbps multimode SC format fiber optic ports
Technical Specifications
Dimensions
| Width | 57 mm |
| Height | 133 mm |
| Depth | 125 mm |
Material specifications
| Color | gray aluminum |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet (RJ45)
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 6 (RJ45 ports) |
Ethernet FO
| Connection Method | SC |
| Transmission Speed | 100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass |
| Transmission length | 11000 m (fiberglass with F-G 62.5/125 0.7 dB/km F1000) |
| Transmission length | 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200) |
| Transmission length | 3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600) |
| Transmission length | 2800 m (fiberglass with F-G 50/125 1.6 dB/km F800) |
| Wavelength | 1300 nm |
| Signal LEDs | Data receive, link status |
| No. of channels | 2 (SC multi-mode) |
Serial (RS-232)
| Connection Method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product properties
| Product family | Managed Switch SMN |
| Type | Block design |
Switch functions
| Diagnostic functions | RMON History |
| Diagnostic functions | N:1-Portmirroring |
| Diagnostic functions | LLDP (Link Layer Discovery Protocol) |
| Diagnostic functions | SNMP-Traps |
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 100 mA |
| PROFINET conformance class | Conformance-Class B |
| PROFINET device function | PROFINET device |
| PROFINET device function | Fast Startup |
| Filter functions | Quality of Service (4 priority classes) |
| Filter functions | Port-Priorisierung |
| Filter functions | VLAN |
| Filter functions | IGMP Snooping (128 groups) |
| Filter functions | IGMP Query |
| Filter functions | Auto-Query-Port |
| Filter functions | Extended Multicast Filtering |
| Filter functions | Static Multicast Filtering |
| Management | Web-based management (HTTP) |
| Management | SNMP v1/v2 |
| Management | Serial interface (V.24) |
| Redundancy | MRP (Media Redundancy Protocol) |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supported browsers | Internet Explorer 5.5 or higher |
| Additional functions | BootP |
| Additional functions | DHCP-Client |
| Time synchronization | SNTP |
Security functions
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Electrical properties
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 18 V DC ... 32 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 350 mA (at US = 24 V DC) |
Function
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 100 mA |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
EMC data
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4:2007 + A1:2011 |
Functionality
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Accessories
FL MEM PLUG - Exchangeable configuration memory of the device settings for simple device exchange and set-up
FL MEM PLUG/MRM - Exchangeable configuration memory of the device settings for simple device exchange and set-up In addition, the Media Redundancy Manager (MRM) license for use is stored within the Media Redundancy protocol (MRP).
FL SNMP OPC SERVER V3 - SNMP-OPC server, German and English, for monitoring and configuration of SNMP-capable equipment in HMI and SCADA systems
FL CAT6 PATCH 0,3 - Patch cable, degree of protection: IP20, cable length: 0.3 m, number of positions: 8, 1 Gbps, CAT6, Ethernet- FL CAT6 PATCH 1,0 - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 2,0 - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 5,0 - Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 10 - Patch cable, degree of protection: IP20, cable length: 10 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 15,0 - Patch cable, degree of protection: IP20, cable length: 15 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
