Official DistributorSKU
MPN
FL SWITCH SMN 6TX/2POF-PN
Weight
0.846 kg
This product is Not Cancellable/Not Returnable
Series FL-SWITCH-SMN

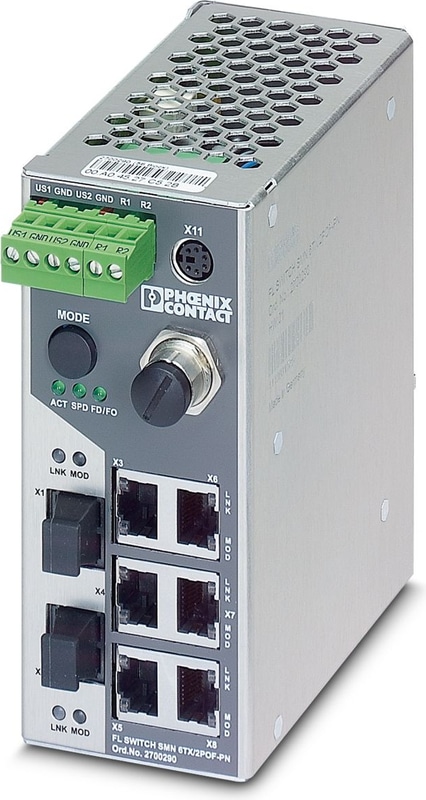

FL SWITCH SMN 6TX/2POF-PN - Industrial Ethernet Switch
Smart Managed Narrow switch with six 10/100 Mbps RJ45 ports und two 100 Mbps POF SC-RJ ports, PROFINET mode (default)
- PROFINET-Device
- SNMP
- MRP (client and manager)
- VLANs
- RSTP
- Web-based management, SNMP
- Slim design
Technical Specifications
Dimensions
| Width | 57 mm |
| Height | 133 mm |
| Depth | 125 mm |
Material specifications
| Color | gray aluminum |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 6 (RJ45 ports) |
POF/PCF
| Connection Method | POF SC-RJ |
| Transmission Speed | 10/100 Mbps (full duplex) |
| Transmission physics | POF-SCRJ |
| Transmission length | up to 100 m (depending on the fiber used) |
| Wavelength | 650 nm |
| No. of channels | 2 (SC-RJ) |
Serial (RS-232)
| Connection Method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product properties
| Product family | Managed Switch SMN |
| Type | Book type |
Switch functions
| Diagnostic functions | RMON History |
| Diagnostic functions | N:1-Portmirroring |
| Diagnostic functions | LLDP (Link Layer Discovery Protocol) |
| Diagnostic functions | SNMP-Traps |
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 100 mA |
| PROFINET conformance class | Conformance-Class B |
| PROFINET device function | PROFINET device |
| PROFINET device function | Fast Startup |
| Filter functions | Quality of Service (4 priority classes) |
| Filter functions | Port-Priorisierung |
| Filter functions | VLAN |
| Filter functions | IGMP Snooping (128 groups) |
| Filter functions | IGMP Query |
| Filter functions | Auto-Query-Port |
| Filter functions | Extended Multicast Filtering |
| Filter functions | Static Multicast Filtering |
| Management | Web-based management (HTTP) |
| Management | SNMP v1/v2 |
| Management | Serial interface (V.24) |
| Redundancy | MRP (Media Redundancy Protocol) |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supported browsers | Internet Explorer 5.5 or higher |
| Additional functions | BootP |
| Additional functions | DHCP-Client |
| Time synchronization | SNTP |
Security functions
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Electrical properties
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| Local diagnostics | FAIL Div. LED red |
| Local diagnostics | LNK/ACT Link status Green LED |
| Local diagnostics | ACT/MODE Receiving/sending telegrams Green LED |
| Local diagnostics | SPD/MODE Data transmission speed Green LED |
| Local diagnostics | FD/FO Duplex mode with twisted pair ports; system reserve of the POF-SCRJ interface Green LED |
| Maximum power dissipation for nominal condition | 7.68 W |
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 18 V DC ... 32 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 340 mA (at US = 24 V DC) |
| Current consumption | 320 mA |
Function
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 100 mA |
Connection data
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Standards and Regulations
| Free from substances that could impair the application of coating | Yes |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A |
| Conformance with EMC directives | IEC 61000-4-3 (electromagnetic fields) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4:2007 + A1:2011 |
Functionality
| Basic Functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
Accessories
FL MEM PLUG - Exchangeable configuration memory of the device settings for simple device exchange and set-up
FL MEM PLUG/MRM - Exchangeable configuration memory of the device settings for simple device exchange and set-up In addition, the Media Redundancy Manager (MRM) license for use is stored within the Media Redundancy protocol (MRP).
FL SNMP OPC SERVER V3 - SNMP-OPC server, German and English, for monitoring and configuration of SNMP-capable equipment in HMI and SCADA systems
FL CAT6 PATCH 0,3 - Patch cable, degree of protection: IP20, cable length: 0.3 m, number of positions: 8, 1 Gbps, CAT6, Ethernet- FL CAT6 PATCH 1,0 - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 2,0 - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 5,0 - Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 10 - Patch cable, degree of protection: IP20, cable length: 10 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
- FL CAT6 PATCH 15,0 - Patch cable, degree of protection: IP20, cable length: 15 m, number of positions: 8, 1 Gbps, CAT6, Ethernet
