ABB DO562
ABBOfficial Distributor

By ABB

SKU
MPN
1SAP230900R0000

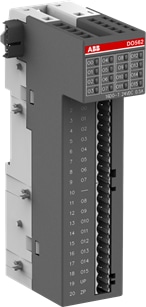

DO562: S500-eCo Digital output module. 16 DO: 24VDC 0.5A. 1-wire.
Technical Specifications

Dimensions

Product Net Weight0.16 kg
Product Net Depth / Length75 mm
Product Net Height135 mm
Product Net Width34 mm
Gross Weight0.219 kg
Package Level 1 Depth / Length93 mm
Package Level 1 Height63 mm
Package Level 1 Width170 mm
Package Level 1 Units1 carton

Technical

Function16 DO: 24VDC 0.5A
Number of Digital Outputs16
Number of Digital Configurable I/Os0
OutputTransistor
Output Voltage TypeDC
Output Current0.5 A
Output Voltage Maximum20.4 ... 28.8 V
Connection TypePluggable
Degree of ProtectionIP20
Supply Voltage20.4 … 28.8 V DC

Additional Information

Product Main TypeDO562

Why Proax for ABB DO562?

Proax is an authorized distributor of ABB DO562 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
