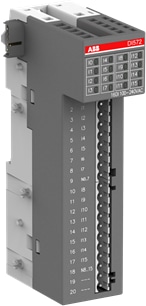

ABB DI572

DI572

ABBOfficial Distributor

By ABB

SKU
ABB1SAP230500R0000
MPN
1SAP230500R0000
DI572: S500-eCo Digital input module. 16 DI 100..240VAC. 1-wire.
Technical Specifications

Dimensions

Product Net Weight0.135 kg
Product Net Depth / Length75 mm
Product Net Height135 mm
Product Net Width34 mm
Gross Weight0.222 kg
Package Level 1 Depth / Length93 mm
Package Level 1 Height63 mm
Package Level 1 Width170 mm
Package Level 1 Units1 carton

Technical

Function16 DI 100..240VAC
Number of digital inputs16
Number of Digital Configurable I/Os0
Input Voltage TypeAC
Input Current8 mA
Maximum input voltage0 ... 264 V
Delay Time (τ)24 … 24 ms
Connection TypePluggable
Degree of ProtectionIP20

Additional Information

Product Main TypeDI572

Why Proax for ABB DI572?

Proax is an authorized distributor of ABB DI572 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
