Official DistributorBy ABB
SKU
MPN
1SAP231900R0000
Weight
0.15 kg

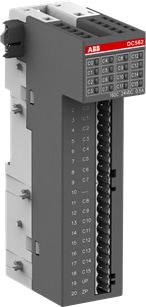

DC562: S500-eCo Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A. 1-wire.
Technical Specifications
Dimensions
| Product Net Weight | 0.15 kg |
| Product Net Depth / Length | 75 mm |
| Product Net Height | 135 mm |
| Product Net Width | 34 mm |
| Gross Weight | 0.222 kg |
| Package Level 1 Depth / Length | 93 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Width | 170 mm |
| Package Level 1 Units | 1 carton |
Technical
| Function | 16 configurable DI/DO: 24VDC 0.5A |
| Number of Digital Configurable I/Os | 16 |
| Input Voltage Type | DC |
| Input Current | 5 mA |
| Maximum input voltage | 0 ... 30 V |
| Delay Time (τ) | 8 … 8 ms |
| Output | Transistor |
| Output Voltage Type | DC |
| Output Current | 0.5 A |
| Output Voltage Maximum | 20.4 … 28.8 V |
| Connection Type | Pluggable |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Product Main Type | DC562 |
Why Proax for ABB DC562?
Proax is an authorized distributor of ABB DC562 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
