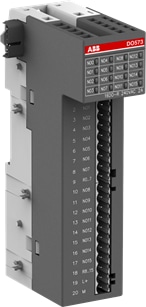

ABB DO573
ABBOfficial Distributor

By ABB

SKU
MPN
1SAP231300R0000
DO573: S500-eCo Digital output module. 16 DO relay: 24VDC/24VAC or 100..240VAC 2A.
Technical Specifications

Dimensions

Product Net Weight0.19 kg
Product Net Depth / Length75 mm
Product Net Height135 mm
Product Net Width34 mm
Gross Weight0.259 kg
Package Level 1 Depth / Length93 mm
Package Level 1 Height63 mm
Package Level 1 Width170 mm
Package Level 1 Units1 carton

Technical

Function16 DO relay: 24VDC/24VAC or 100..240VAC 2A
Number of Digital Outputs16
Number of Digital Configurable I/Os0
OutputRelay
Output Voltage TypeAC
Output Current2 A
Output Voltage Maximum195.5 ... 276 V
Connection TypePluggable
Degree of ProtectionIP20
Supply Voltage20.4 … 28.8 V DC

Additional Information

Product Main TypeDO573

Why Proax for ABB DO573?

Proax is an authorized distributor of ABB DO573 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
