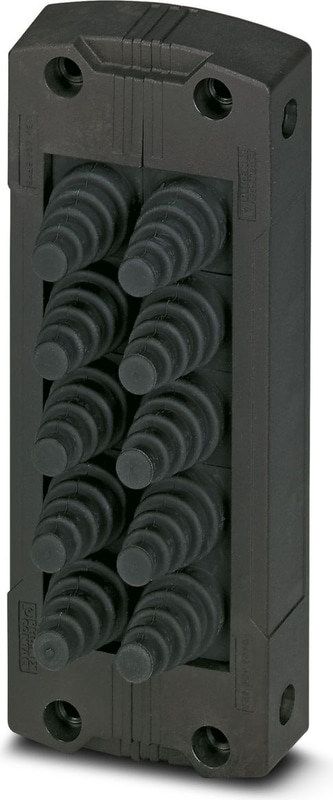

CES-B24-10XSRC-BK - Sealing frame
Sealing frame with screw locking, size: B24, with 10 pre-mounted coned sleeves for a 2 mm ... 11 mm conductor diameter
Documents
Technical Specifications
Product properties
| Type | B24 |
| Frame type | Sealing frame with coned sleeves |
Connection data
| Tightening torque | 2 Nm ... 4 Nm (Locking screw) |
Dimensions
| Width | 58 mm |
| Height | 20 mm |
| Length | 147 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 5.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 113 mm |
Material specifications
| Material | PA (Frame) |
| Material | NBR (Coned sleeves) |
Cable/line
| External Cable Diameter | 10x 2 mm ... 11 mm |
Characteristics
| Number of cable seals | 10 |
Ambient conditions
| Degree of Protection | IP54 |
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 120 °C (static) |
Mounting
| Assembly note | M4 locking screw with 3 mm hex socket head, torque 2 ... 4 Nm |
| Assembly note | The flat gasket supplied should be inserted between the wall and the sealing frame in the case of panel mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
