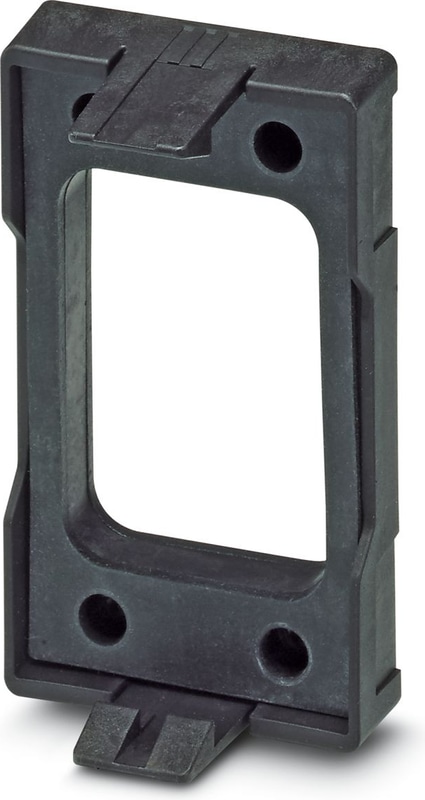

CES-B10-SF-PLBK - Snap-on frame
Snap-on frame, design: B10, material: PA (halogen-free), color: black, length: 108 mm, width: 64 mm, height: 39 mm
- Can also be used for standard panel cutouts for heavy-duty industrial connectors
Technical Specifications
Notes
| Note on application | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
Product properties
| Type | B10 |
| Frame type | Snap-on frame |
Dimensions
| Width | 64 mm |
| Height | 39 mm |
| Length | 108 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 83 mm |
| Hole diameter | 4.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP54 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (static) |
Mounting
| Assembly instructions | M4 mounting screw, 1.8 Nm torque. |
| Assembly instructions | A video tutorial on how to assemble the product can be found in the Downloads area, in the Video category. |
Accessories
CES-B10-SFC-M-15,6 - Locking element, design: B10, material: Steel, galvanized, length: 99 mm, width: 57 mm, height: 15.6 mm
CES-B10-HFFS-PLBK - Sealing frame, With locking latch, design: B10, Number of cable seals (small): 6, material: PA (halogen-free), color: black, length: 99.2 mm, width: 58 mm, height: 20 mm
CES-B10-SFFS-PLBK - Sealing frame, with screw locking, design: B10, Number of cable seals (small): 6, material: PA (halogen-free), color: black, length: 99.2 mm, width: 58 mm, height: 20 mm
