Series CES-B

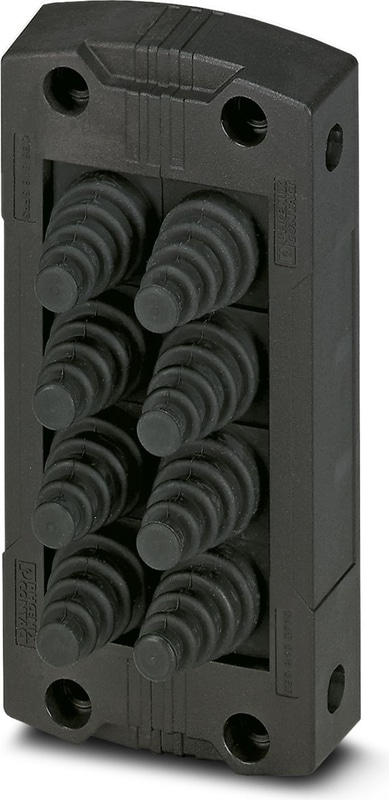

CES-B16-8XSRC-BK - Sealing frame
Sealing frame with screw locking, size: B16, with 8 pre-mounted coned sleeves for a 2 mm ... 11 mm conductor diameter
Technical Specifications
Product properties
| Type | B16 |
| Frame type | Sealing frame with coned sleeves |
Connection data
| Tightening torque | 2 Nm ... 4 Nm (Locking screw) |
Dimensions
| Width | 58 mm |
| Height | 20 mm |
| Length | 120 mm |
| Drill hole distance, horizontal | 103 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 5.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
Material specifications
| Material | PA |
| Material | NBR |
Cable/line
| External Cable Diameter | 8x 2 mm ... 11 mm |
Characteristics
| Number of cable seals | 8 |
Ambient conditions
| Degree of Protection | IP54 |
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 120 °C (static) |
Mounting
| Assembly instructions | M4 locking screw with 3 mm hex socket head, torque 2 ... 4 Nm |
| Assembly instructions | The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
Accessories
CUTFOX-ES - Electrician's scissors, high cutting performance thanks to micro-serrated cutting area, suitable for copper, aluminum, Kevlar fibers, and plastic, two-component non-slip soft-grip handles, ergonomic design, adjustable screw joint
