0801659
Official DistributorSKU
PHX0801659
MPN
CES-B16-SFFS-PLBK
Weight
0.162 kg
Series CES-B

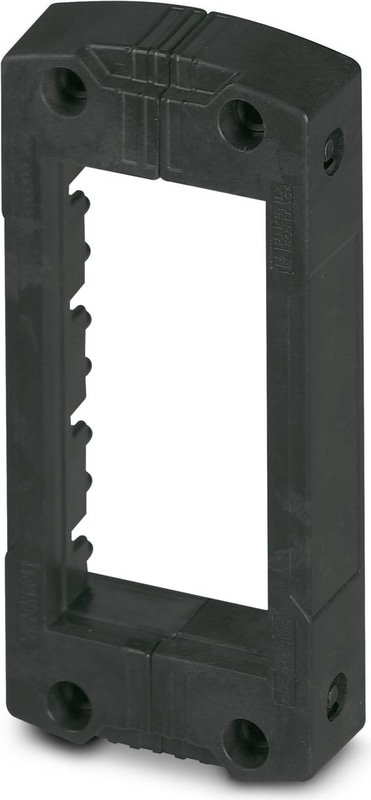

CES-B16-SFFS-PLBK - Sealing frame
Sealing frame, with screw locking, design: B16, Number of cable seals (small): 8, material: PA (halogen-free), color: black, length: 120 mm, width: 58 mm, height: 20 mm
- Can also be used for standard panel cutouts for heavy-duty industrial connectors
Technical Specifications
Notes
| Note on application | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
Product properties
| Type | B16 |
| Frame type | Sealing frame |
Connection data
| Tightening torque | 2 Nm ... 4 Nm (Locking screw) |
| Tightening torque | 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912)) |
Dimensions
| Width | 58 mm |
| Height | 20 mm |
| Length | 120 mm |
| Drill hole distance, horizontal | 32 mm |
| Drill hole distance, vertical | 103 mm |
| Hole diameter | 5.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
Material specifications
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Characteristics
| Number of cable seals | 0 ... 8 (small seals, depending on the number of large seals installed) |
| Number of cable seals | 0 ... 2 (large seals, depending on the number of small seals installed) |
Ambient conditions
| Degree of Protection | IP54 |
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 120 °C (static) |
Mounting
| Assembly instructions | M4 locking screw with 3 mm Allen screw head, 3 ... 4 Nm torque, 1 large sleeve requires the space of 4 small sleeves, mounting screw: M4 (ISO 4762/DIN 912), 1.8 Nm torque |
| Assembly instructions | The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: when using the CES-SRC-BK / CES-LRC-BK cone sleeve, for vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel, and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
Accessories
