0801727
Official DistributorSKU
PHX0801727
MPN
CES-B24-WRG-BK
Weight
0.013 kg
This product is Not Cancellable/Not Returnable
Series CES-B

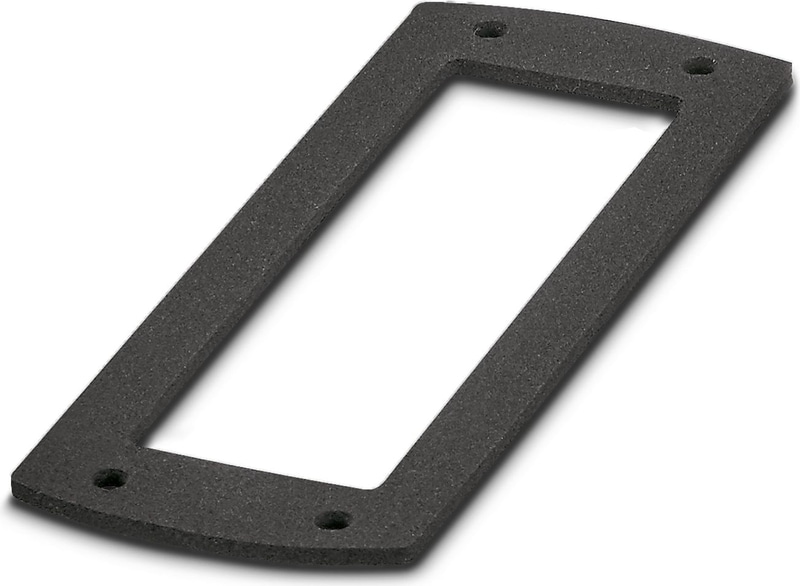

CES-B24-WRG-BK - Flat gasket
Flat gasket made of NBR, size B24
Technical Specifications
Product properties
| Type | B24 |
Dimensions
| Width | 57.5 mm |
| Height | 2.5 mm |
| Length | 147 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
Material specifications
| Seal material | NBR |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 80 °C (static) |
Why Proax for Phoenix Contact 0801727?
Proax is an authorized distributor of Phoenix Contact 0801727 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
