Official DistributorBy ABB
SKU
MPN
1SAJ655000R0100
Weight
0.136 kg

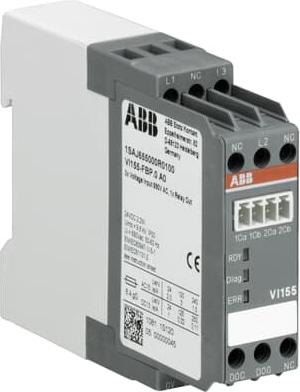

Voltage expansion module for UMC100. Also for use in IT networks. With this module the UMC100 provides voltage and power based supervision. Available process data: line to line voltage, power, energy, cosphi, THD (total harmonic distortion)
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Height | 78 mm |
| Product Net Weight | 0.116 kg |
Technical
| Connecting Capacity | 1x 0.75-2.5 mm² |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Power Loss | Approximately 0.8 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 508 |
| Suitable for | UMC100-FBP |
| Suitable for | UMC100.3 |
| Suitable for Product Class | Universal Motor Controllers |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.22 N·m |
| Tightening torque | Control Circuit 0.6 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 20-12 AWG |
Why Proax for ABB VI155-FBP.0?
Proax is an authorized distributor of ABB VI155-FBP.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | VI155FBP0 |
| Pack Size | 1 |
