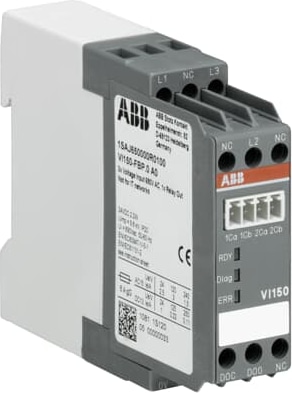

VI150-FBP.0
Official DistributorBy ABB
SKU
ABB1SAJ650000R0100
MPN
1SAJ650000R0100
Weight
0.113 kg
Voltage expansion module for UMC100. Usage for grounded networks (TN) only. With this module the UMC100.3 provides voltage and power based supervision. Available process data: line to line voltage, power, energy, cosphi, THD (total harmonic distortion)
Technical Specifications
Supplier Information - AETAD009
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
Supplier Information - BRABB008
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRABB008EXPU |
Supplier Information - CHSEC006
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CHSEC006EXPU |
Supplier Information - INABB003
| Country or Territory of Origin | India |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB003EXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Height | 78 mm |
| Product Net Weight | 0.113 kg |
Technical
| Connecting Capacity | 1x 0.75-2.5 mm² |
| Mounting Position | Any |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Number of Poles | 3P |
| Phase Loss Sensitive | Yes |
| Pollution degree | 3 |
| Power Loss | Approximately 0.6 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 4 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Current AC-15 (Ie) | (240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (24 V DC) 1 A |
| Rated Operational Current DC-13 (Ie) | (125 V DC) 0.22 A |
| Rated Operational Current DC-13 (Ie) | (250 V DC) 0.11 A |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Voltage | Auxiliary Circuit 12 ... 250 V AC/DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 508 |
| Suitable for | UMC100-FBP |
| Suitable for | UMC100.3 |
| Suitable for Product Class | Universal Motor Controllers |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.22 N·m |
| Tightening torque | Control Circuit 0.6 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 20-12 AWG |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
