DX122-FBP.0
Official DistributorBy ABB
SKU
ABB1SAJ622000R0101
MPN
1SAJ622000R0101
Weight
0.22 kg

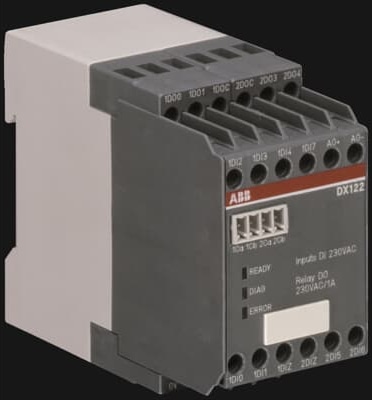

DX122 IO-Module for UMC100, 8 DI 110-230 V AC, 4 DO, 1AO, Supply 24 V DC. One digital extension module can be connected at the same time.
Technical Specifications
Supplier Information - AETAD009
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
Supplier Information - BRABB008
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRABB008EXPU |
Supplier Information - CHSEC006
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CHSEC006EXPU |
Supplier Information - INABB003
| Country or Territory of Origin | India |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB003EXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Height | 78 mm |
| Product Net Weight | 0.22 kg |
Technical
| Connecting Capacity | 1x 0.75-2.5 mm² |
| Mounting Position | Any |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Pollution degree | 3 |
| Power Loss | Approximately 2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | (240 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.22 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Rated Operational Current DC-13 (Ie) | (250 V) 0.11 A |
| Rated Operational Voltage | Auxiliary Circuit 12 ... 250 V AC/DC |
| Recommended Screw Driver | Pozidriv 1 |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 6 A |
| Standards | CAN/CSA C22.2 No.14 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 508 |
| Sub-Function | 0 - 10 V |
| Suitable for | UMC100-FBP.0 |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.22 N·m |
| Tightening torque | Control Circuit 0.6 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 20-12 AWG |
Why Proax for ABB DX122-FBP.0?
Proax is an authorized distributor of ABB DX122-FBP.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DX122FBP0 |
| Pack Size | 1 |
