Official DistributorBy ABB
SKU
MPN
1SAJ613000R0101
Weight
0.136 kg

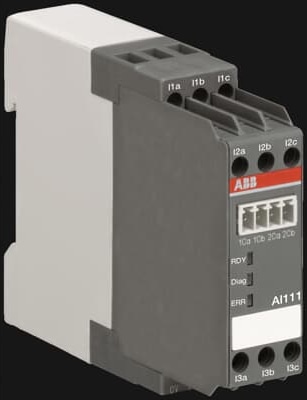

AI111.0 AI111.0 Analog Input-Module for UMC100, 3 inputs PT100, PT100, KTY83, KTY84, NTC, Supply 24 V DC. Two analogue extension modules can be connected at the same time.
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 102 mm |
| Product Net Height | 78 mm |
| Product Net Weight | 0.116 kg |
Technical
| Connecting Capacity | 1x 0.75-2.5 mm² |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Power Loss | Approximately 1 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.61010-1 |
| Standards | CAN/CSA C22.2 No.61010-2-201 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 61010-1 |
| Standards | UL 61010-2-201 |
| Sub-Function | RTD |
| Sub-Function | NTC |
| Sub-Function | 0/4 - 20 mA |
| Suitable for | UMC100.3 |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.22 N·m |
| Tightening torque | Control Circuit 0.6 ... 0.8 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 20-12 AWG |
Why Proax for ABB AI111.0?
Proax is an authorized distributor of ABB AI111.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | AI1110 |
| Pack Size | 1 |
