UMCIO-CAB.030
Official DistributorBy ABB
SKU
ABB1SAJ691000R0001
MPN
1SAJ691000R0001
Weight
0.011 kg

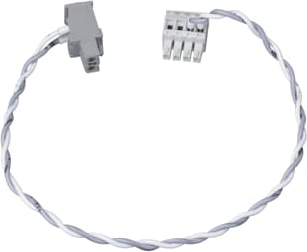

UMCIO-CAB.030 Connection Cable to connect UMC100.3 to first IO Module, e.g. UMC100.3 to VI150-FBP.0. The cable wires are twisted and unshielded.
Technical Specifications
Dimensions
| Product Net Width | 16 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Height | 0.026 mm |
| Product Net Weight | 0.011 kg |
Technical
| Connecting Capacity | 1x 0.75-1.5 mm² |
| Mounting Type | DIN-Rail with Adapter |
| Mounting on DIN Rail | No |
| Recommended Screw Driver | Pozidriv 1 |
| Suitable for | UMC100-FBP |
| Suitable for | UMC100.3 |
| Suitable for | DX111-FBP.0 |
| Suitable for | DX122-FBP.0 |
| Suitable for | AI111.0 |
| Suitable for | VI150-FBP.0 |
| Suitable for | VI155-FBP.0 |
| Suitable for Product Class | Universal Motor Controllers |
| Suitable for Product Class | Universal Motor Controllers Accessories |
| Terminal Type | Screw Terminals |
| Tightening torque | Control Circuit 0.5 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-16 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 18-16 AWG |
Why Proax for ABB UMCIO-CAB.030?
Proax is an authorized distributor of ABB UMCIO-CAB.030 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | UMCIOCAB030 |
| Pack Size | 1 |
