Official DistributorBy ABB
SKU
MPN
1SAJ590000R0103
Weight
0.058 kg

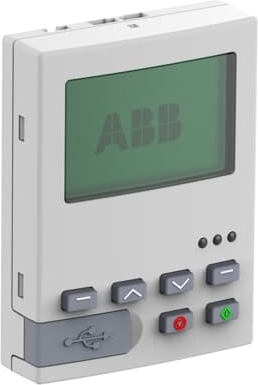

UMC100-PAN is a LCD Panel with USB Interface for connection to a PC. It can be directly mounted onto the UMC100.3 motor controller. Or it also can be mounted at the front of a drawer and connected to the UMC100.3 via the UMC100-CAB.xx0.
Technical Specifications
Dimensions
| Product Net Width | 50 mm |
| Product Net Depth / Length | 17 mm |
| Product Net Height | 67 mm |
| Product Net Weight | 0.047 kg |
Technical
| Mounting Type | UMC100.3/Door Mounted |
| Power Loss | Approximately 0.3 W |
| Standards | CAN/CSA C22.2 No.60947-1 |
| Standards | CAN/CSA C22.2 No.60947-4-1 |
| Standards | IEC/EN 61000-6-2 |
| Standards | IEC/EN 61000-6-4 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1A |
| Suitable for | UMC100 |
Why Proax for ABB UMC100-PAN?
Proax is an authorized distributor of ABB UMC100-PAN and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | UMC100PAN |
| Pack Size | 1 |
