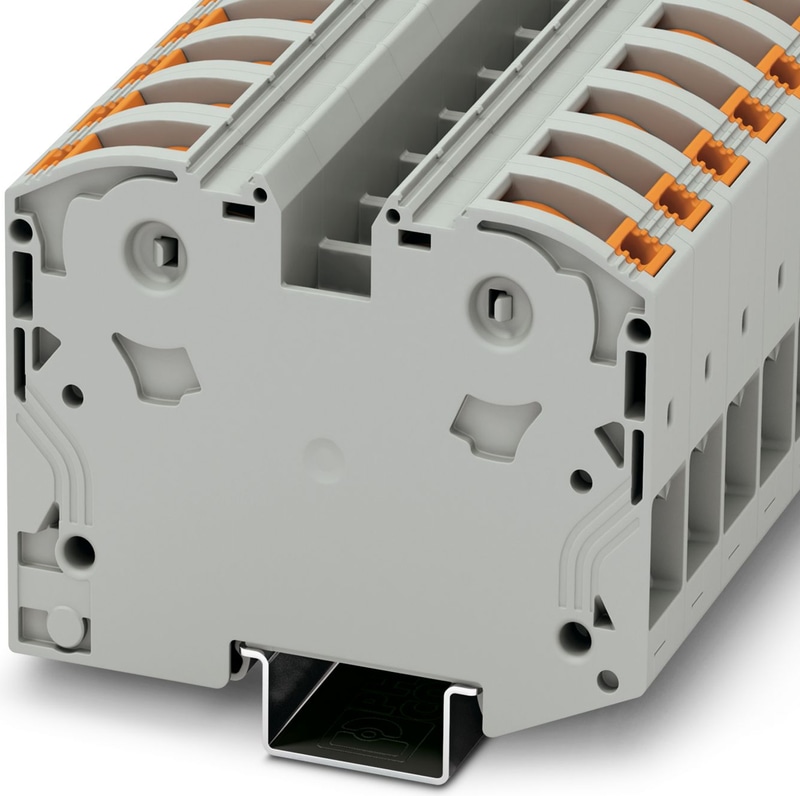

PTPOWER 35 - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: gray

  • Quick and easy connection is now also possible for large conductors with the high-current terminal block
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
  • The compact design and front connection enable wiring in a confined space
Technical Specifications

Product properties

Number of Connections2
Number of rows1
Potentials1

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.06 W

Connection data

Number of connections per level2
Nominal cross section35 mm²
Rated cross section AWG2
Stripping length25 mm
Conductor cross section rigid2.5 mm² ... 35 mm²
Cross section AWG12 ... 2 (converted acc. to IEC)
Conductor cross section flexible2.5 mm² ... 35 mm²
Conductor cross section, flexible [AWG]12 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)2.5 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)2.5 mm² ... 35 mm²
Nominal Current125 A
Maximum Load Current125 A (with 35 mm² conductor cross section)
Nominal Voltage1000 V
Nominal cross section35 mm²

Connection cross sections directly pluggable

Conductor cross section rigid2.5 mm² ... 35 mm²
Conductor cross section, rigid [AWG]12 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)2.5 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)2.5 mm² ... 35 mm²

Rated data (ATEX/IECEx)

Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1206612 SZF 3-1,0X5,5
Ex-certified accessories1201662 E/AL-NS 35
List of bridgesPlug-in bridge / FBS 2-16 / 3005963
Bridge data89 A / 25 mm²
Ex temperature increase40 K (120 A/35 mm²)
Rated voltage690 V
for bridging with bridge690 V
Rated Insulation Voltage660 V
Output(Permanent)

Ex level General

Rated current109 A
Maximum Load Current109 A
Contact resistance0.16 mΩ

Ex connection data General

Ferrule length25 mm
Stripping length25 mm
Nominal cross section35 mm²
Rated cross section AWG2
Connection capacity rigid2.5 mm² ... 35 mm²
Connection capacity AWG12 ... 2
Conductor cross section flexible, with ferrule without plastic sleeve min.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.35 mm²

Dimensions

Width16 mm
Height91.6 mm
Depth on NS 35/7,569.8 mm
Depth on NS 35/1577.3 mm

Material specifications

Colorgray
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed

Surge voltage test

Test voltage setpoint9.8 kV
ResultTest passed

Temperature-rise test

Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 35 mm²4.2 kA
ResultTest passed

Power-frequency withstand voltage

Test voltage setpoint2.2 kV
ResultTest passed

Mechanical data

Open side panelNo

Mechanical strength

ResultTest passed

Attachment on the carrier

DIN rail/fixing supportNS 35
Test force setpoint10 N
ResultTest passed

Test for conductor damage and slackening

Rotation speed10 rpm
Revolutions135
Conductor cross section/weight2.5 mm² / 0.7 kg
Conductor cross section/weight35 mm² / 6.8 kg
ResultTest passed

Aging

Temperature cycles192
ResultTest passed

Needle-flame test

Time of exposure30 s
ResultTest passed

Oscillation/broadband noise

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 2, bogie-mounted
SpectrumService life test category 2, bogie-mounted
SpectrumService life test category 1, class B, body mounted
Frequencyf1 = 5 Hz to f2 = 250 Hz
Frequencyf1 = 5 Hz to f2 = 250 Hz
Frequencyf1 = 5 Hz to f2 = 150 Hz
ASD level6.12 (m/s²)²/Hz
ASD level6.12 (m/s²)²/Hz
ASD level0.964 (m/s²)²/Hz
Acceleration3.12g
Acceleration3.12g
Acceleration5.72 m/s²
Test duration per axis5 h
Test duration per axis5 h
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Test directionsX-, Y- and Z-axis
Test directionsX-, Y- and Z-axis
ResultTest passed
ResultTest passed

Shocks

SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Pulse shapeHalf-sine
Pulse shapeHalf-sine
Acceleration30g
Acceleration30g
Acceleration50 m/s²
Shock duration18 ms
Shock duration18 ms
Shock duration30 ms
Number of shocks per direction3
Number of shocks per direction3
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Test directionsX-, Y- and Z-axis (pos. and neg.)
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
ResultTest passed

Ambient conditions

Ambient Temperature (Operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %

Mounting

Mounting TypeNS 35/15
Accessories
  • Phoenix Contact1206612
    1206612
    Screwdriver - SZF 3-1,0X5,5
  • Phoenix Contact1213144
    1213144
    CRIMPFOX CENTRUS 6S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
  • Phoenix Contact1213154
    1213154
    CRIMPFOX CENTRUS 10S - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
  • Phoenix Contact1213146
    1213146
    CRIMPFOX CENTRUS 6H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 … 6 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
  • Phoenix Contact1213156
    1213156
    CRIMPFOX CENTRUS 10H - Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm2 ... 10 mm2, also for TWIN ferrules up to 2 x 4 mm2, automatic cross section adjustment, lateral insertion, equipped with fall protection
  • Phoenix Contact1212045
    1212045
    CRIMPFOX 10S - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 10 mm2, unlockable pressure lock, lateral entry
  • Phoenix Contact1212046
    1212046
    CRIMPFOX 6H - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 6 mm2, unlockable pressure lock, lateral entry
  • Phoenix Contact1212719
    1212719
    CRIMPFOX 2,5-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 2.5 mm2, lateral entry, trapezoidal crimp
  • Phoenix Contact1212720
    1212720
    CRIMPFOX 6-M - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
  • Phoenix Contact1212034
    1212034
    CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
  • Phoenix Contact1212037
    1212037
    CRIMPFOX 6T - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6 mm2, lateral entry, trapezoidal crimp
  • Phoenix Contact1212043
    1212043
    CRIMPFOX 6S-F - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.5 mm2 ... 6 mm2, front entry, square crimp
  • Phoenix Contact1212721
    1212721
    CRIMPFOX 10 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 4 mm2 ... 10 mm2, lateral entry, trapezoidal crimp
  • Phoenix Contact1212039
    1212039
    CRIMPFOX 25R - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 10 mm2 ... 25 mm2, lateral entry, WM crimp
  • Phoenix Contact1212041
    1212041
    CRIMPFOX 50R - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 35 mm2 ... 50 mm2, lateral entry, WM crimp
  • Phoenix Contact1212072
    1212072
    CRIMPFOX-M - Basic pliers, for accommodating dies for a wide range of type of contacts
  • Phoenix Contact3029994
    3029994
    Test adapter - PAI-ST 35/1000MM
  • Phoenix Contact3005963
    3005963
    FBS 2-16 - Plug-in bridge, pitch: 16 mm, number of positions: 2, length: 44 mm, color: red
  • Phoenix Contact3030900
    3030900
    Reducing bridge - RB PTPOWER 35-ST(2,5/4)
  • Phoenix Contact3032170
    3032170
    Reducing bridge - RB PTPOWER 35-ST 16
  • Phoenix Contact1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • Phoenix Contact0806602
    0806602
    NS 35/15 WH PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: white
  • Phoenix Contact1204135
    1204135
    NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
  • Phoenix Contact1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • Phoenix Contact1206599
    1206599
    NS 35/15 ZN PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1206586
    1206586
    NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, Standard profile, color: silver
  • Phoenix Contact1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • Phoenix Contact1206573
    1206573
    NS 35/15 CAP - DIN rail end piece, for DIN rail NS 35/15
  • Phoenix Contact1201662
    1201662
    E/AL-NS 35 - End clamp, for end support of UKH 50 to UKH 240, is pushed onto DIN rail NS 35 and fixed with 2 screws, width: 10 mm, color: aluminum
  • Phoenix Contact0828295
    0828295
    0828295 -
  • Phoenix Contact0829255
    0829255
    Marker for terminal blocks - US-TM 100
  • Phoenix Contact0809997
    0809997
    Zack Marker strip, flat - ZBF10:UNBEDRUCKT
  • Phoenix Contact0810009
    0810009
    Zack Marker strip, flat - ZBF10,LGS:FORTL.ZAHLEN
  • Phoenix Contact0810025
    0810025
    Zack Marker strip, flat - ZBF10,QR:FORTL.ZAHLEN
  • Phoenix Contact0818124
    0818124
    Marker for terminal blocks - UC-TMF 10
  • Phoenix Contact0829204
    0829204
    Marker for terminal blocks - UCT-TMF 10
  • Phoenix Contact1053001
    1053001
    Zack marker strip - ZB 10:UNBEDRUCKT
  • Phoenix Contact0824941
    0824941
    Zack marker strip - ZB 10 CUS
  • Phoenix Contact1053014
    1053014
    1053014 -
  • Phoenix Contact1053027
    1053027
    1053027 -
  • Phoenix Contact1053412
    1053412
    Marker for terminal blocks - ZB10,LGS:L1-N,PE
  • Phoenix Contact1053438
    1053438
    Marker for terminal blocks - ZB10,LGS:U-N
  • Phoenix Contact0818069
    0818069
    Marker for terminal blocks - UC-TM 10
  • Phoenix Contact0824605
    0824605
    Marker for terminal blocks - UC-TM 10 CUS
  • Phoenix Contact0829142
    0829142
    Marker for terminal blocks - UCT-TM 10
  • Phoenix Contact3200713
    3200713
    AI 35 -25 RD - Ferrule, sleeve length: 25 mm, color: red

Why Proax for Phoenix Contact 3212064?

Proax is an authorized distributor of Phoenix Contact 3212064 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size10
Recommended
  • Phoenix Contact3212078
    3212078
    PTPOWER 35-F - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray
  • Phoenix Contact3212081
    3212081
    PTPOWER 35-FE - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: black/yellow
  • Phoenix Contact3212082
    3212082
    PTPOWER 35-FE-F - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: black/yellow
  • Phoenix Contact3212079
    3212079
    PTPOWER 35-F BU - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: blue
  • Phoenix Contact3212068
    3212068
    PTPOWER 35-3L - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3212070
    3212070
    PTPOWER 35-3L/FE - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: gray/black-yellow
  • Phoenix Contact3212075
    3212075
    PTPOWER 35-3L/FE-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray/black-yellow
  • Phoenix Contact3212069
    3212069
    PTPOWER 35-3L/N - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: gray/blue
  • Phoenix Contact3212072
    3212072
    PTPOWER 35-3L-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray
  • Phoenix Contact3212071
    3212071
    PTPOWER 35-3L/N/FE - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 10, number of positions: 5, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: gray/blue/black-yellow
  • Phoenix Contact3212076
    3212076
    PTPOWER 35-3L/N/FE-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 10, number of positions: 5, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray/blue/black-yellow
  • Phoenix Contact3212073
    3212073
    PTPOWER 35-3L/N-F - High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: direct screw connection, color: gray/blue
  • Phoenix Contact3212066
    3212066
    PTPOWER 35-PE - Ground terminal, number of connections: 2, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: green-yellow
  • Phoenix Contact3212065
    3212065
    PTPOWER 35 BU - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: blue
  • Phoenix Contact3212095
    3212095
    PTPOWER 35 OG - High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting type: NS 35/15, color: orange
  • Phoenix Contact3215000
    3215000
    PTPOWER 150 - High-current terminal block, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 50 mm2 - 150 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3215002
    3215002
    PTPOWER 150-FE - High-current terminal block, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 50 mm2 - 150 mm2, mounting type: NS 35/15, color: black/yellow
  • Phoenix Contact3215032
    3215032
    PTPOWER 150-FE-F - High-current terminal block, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, 1 level, cross section: 50 mm2 - 150 mm2, mounting type: direct screw connection, color: black/yellow
  • Phoenix Contact3215005
    3215005
    PTPOWER 150-3L - High-current terminal block, Blocked, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, 1 level, cross section: 50 mm2 - 150 mm2, mounting type: NS 35/15, color: gray
  • Phoenix Contact3215007
    3215007
    PTPOWER 150-3L/FE - High-current terminal block, Blocked, nom. voltage: 1500 V, nominal current: 309 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, 1 level, cross section: 50 mm2 - 150 mm2, mounting type: NS 35/15, color: gray/black-yellow
Sold in quantities of 10

Not in stock

Request lead time or order—we'll ensure quick delivery

Phoenix Contact Availability
