Official DistributorSKU
MPN
RB PTPOWER 35-ST(2,5/4)
Weight
0.009 kg
This product is Not Cancellable/Not Returnable
Series RB-PTPOWER

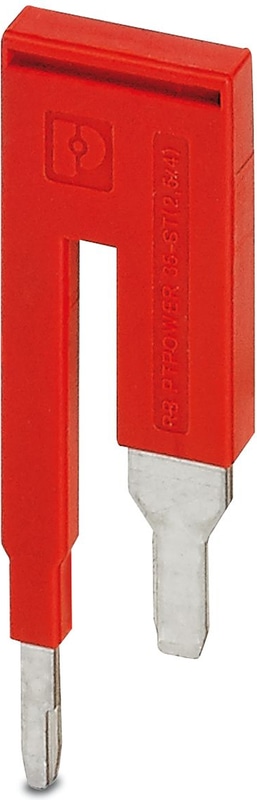

RB PTPOWER 35-ST(2,5/4) - Reducing bridge
Reducing bridge, for bridging of PTPOWER 35 to ST or PT ..N terminal blocks with nominal cross section of 2.5 mm2 and 4 mm2, pitch: 10.8 mm, number of positions: 2, length: 5 mm, color: red
Technical Specifications
Product properties
| Number of Positions | 2 |
| Pitch | 10.8 mm |
Electrical properties
| Maximum Load Current | 45 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Connection data
| Maximum Load Current | 45 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Dimensions
| Width | 17.8 mm |
| Height | 4.8 mm |
| Depth | 56 mm |
| Length | 4.8 mm |
| Pitch | 10.8 mm |
Material specifications
| Color | red |
| Material | PA 6.6 |
| Flammability rating according to UL 94 | V0 |
Why Proax for Phoenix Contact 3030900?
Proax is an authorized distributor of Phoenix Contact 3030900 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
