PROFIBUS DP to PROFIBUS PA coupler
2316370
Official DistributorSKU
PHX2316370
MPN
FB-HSB-DP/PA
Weight
0.85 kg
This product is Not Cancellable/Not Returnable
FB-HSB-DP/PA - Converter

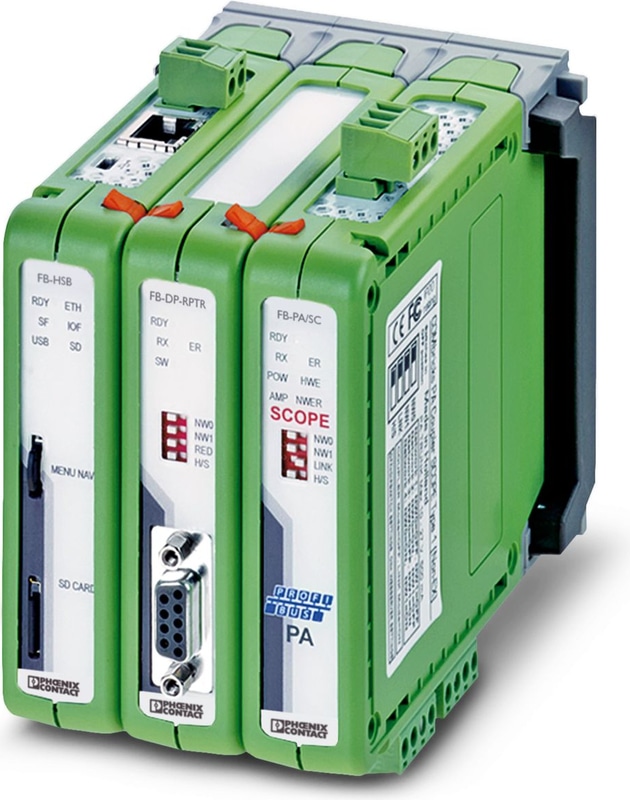

PROFIBUS DP to PROFIBUS PA coupler system for integration and diagnostics of PROFIBUS PA in PROFIBUS DP. Includes the one-network head station unit (FB-HSB), PROFIBUS DP repeater (FB-DP-RPTR), and PROFIBUS PA interface module with oscilloscope functionality.
- Powerful, embedded web server for configuration and access to network diagnostics
- Manage and configure PROFIBUS field devices using FDT/DTM
- Auto detect any baud rate up to 12 Mbps transparently
- One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
Technical Specifications
Supply
| Supply Voltage Range | 10.8 V DC ... 26.4 V DC |
| Max. current consumption | 800 mA |
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 24 ... 12 |
Data: Ethernet
| Connection Method | RJ45 |
| No. of channels | 1 |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Dimensions
| Width | 75 mm |
| Height | 100 mm |
| Depth | 132 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Altitude | 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Conformity/Approvals
| UL, USA / Canada | UL 508 Listed |
| UL, Canada | CSA C22.2 No. 142 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
PROFIBUS standardization
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
