2316375
Official DistributorSKU
PHX2316375
MPN
FB-PA/SC
Weight
0.311 kg

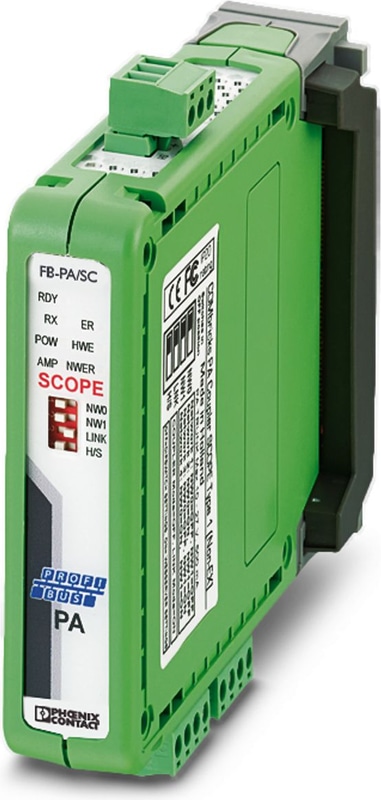

FB-PA/SC - Repeater
PROFIBUS PA interface module with oscilloscope
Technical Specifications
Supply
| Supply Voltage Range | Supplied via backplane |
| Max. current consumption | 12 mA |
| Connection Method | Bus base module |
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 25 mm |
| Height | 100 mm |
| Depth | 132 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Altitude | 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Conformity/Approvals
| UL, USA / Canada | UL 508 Listed |
| UL, Canada | CSA C22.2 No. 142 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
PROFIBUS standardization
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Why Proax for Phoenix Contact 2316375?
Proax is an authorized distributor of Phoenix Contact 2316375 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
