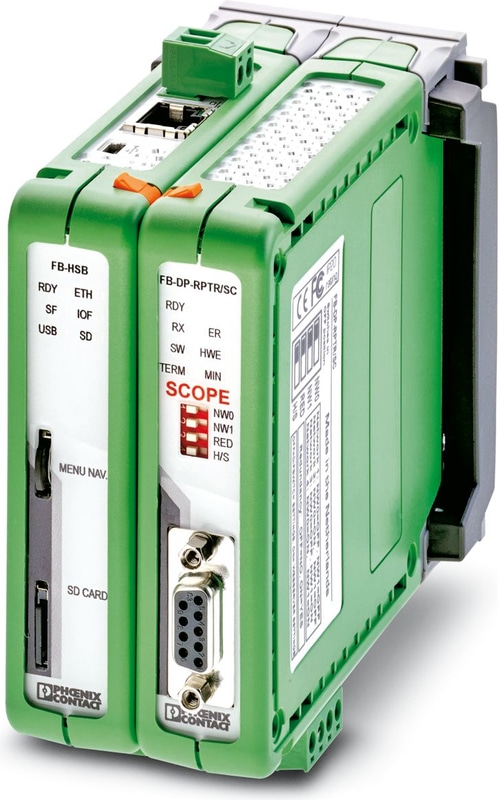

FB-HSB-DP-SC - Repeater
PROFIBUS DP coupler system for integration and diagnostics of PROFIBUS DP. Includes the one-network head station unit (FB-HSB), PROFIBUS DP repeater with oscilloscope (FB-DP-RPTR/SC).
- Powerful, embedded web server for configuration and access to network diagnostics
- Manage and configure PROFIBUS field devices using FDT/DTM
- One communication interface module can drive up to ten individual PROFIBUS DP or PROFIBUS PA modules
- Auto detect any baud rate up to 12 Mbps transparently
Technical Specifications
Supply
| Supply Voltage Range | 10.8 V DC ... 26.4 V DC |
| Max. current consumption | 800 mA |
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 24 ... 12 |
Data: Ethernet
| Connection Method | RJ45 |
| No. of channels | 1 |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Conformity/Approvals
| UL, USA / Canada | UL 508 Listed |
| UL, Canada | CSA C22.2 No. 142 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
PROFIBUS standardization
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
Why Proax for Phoenix Contact 2316382?
Proax is an authorized distributor of Phoenix Contact 2316382 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
