2316374
Official DistributorSKU
PHX2316374
MPN
FB-DP-RPTR/SC
Weight
0.281 kg

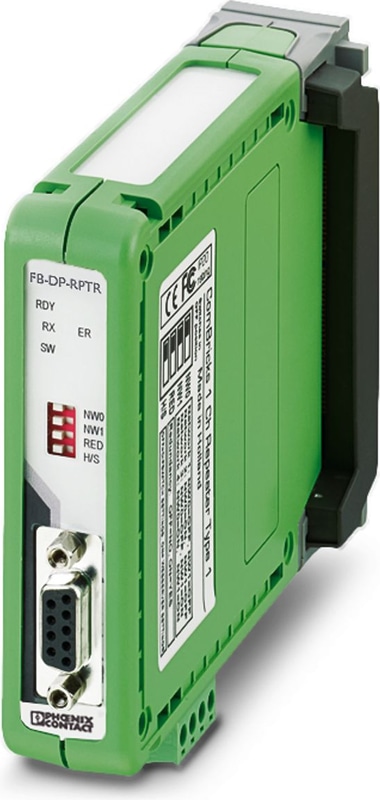

FB-DP-RPTR/SC - Repeater
PROFIBUS DP interface/repeater module with oscilloscope functionality
- Automatic detection of baud rate up to 12 Mbps
- Integrated switchable terminator
- Supported protocols: DP-V0, V1, V2, FDL, MPI, FMS and Profisafe
- No bus addressing of device required
- Oscilloscope and bar graph functionality
Technical Specifications
Supply
| Typical current consumption | 400 mA |
| Max. current consumption | 555 mA |
| Connection Method | Bus base module |
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 24 ... 12 |
Data: PROFIBUS DP
| Transmission Speed | 12 Mbps (100 m cable length) |
| Transmission Speed | 1.5 Mbps (200 m cable length) |
| Transmission Speed | 500 kbps (400 m cable length) |
| Transmission Speed | 187.5 kbps (1000 m cable length) |
| Transmission speed range | 9.6 kbps ... 93.75 kbps (1200 m cable length) |
| Termination resistor | 390 Ω - 220 Ω - 390 Ω (switchable) |
Dimensions
| Width | 25 mm |
| Height | 100 mm |
| Depth | 132 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Conformity/Approvals
| UL, USA / Canada | UL 508 Listed |
| UL, Canada | CSA C22.2 No. 142 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
PROFIBUS standardization
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Why Proax for Phoenix Contact 2316374?
Proax is an authorized distributor of Phoenix Contact 2316374 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
