2316383
Official DistributorSKU
PHX2316383
MPN
FB-HSP-PLUG/24DC/6A
Weight
0.276 kg

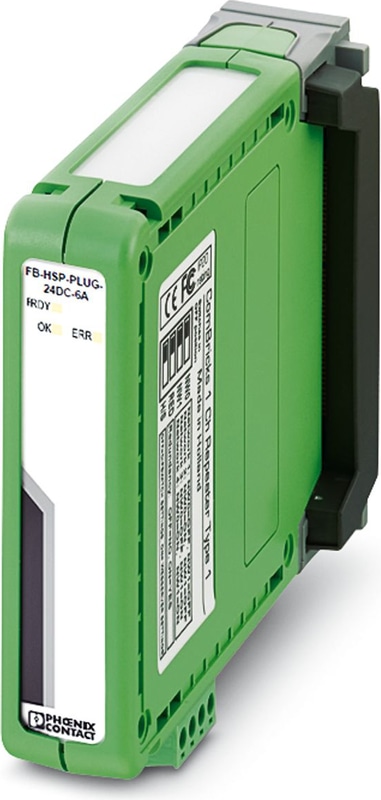

FB-HSP-PLUG/24DC/6A - Power module
PROFIBUS power module
- Adds additional power to the PROFIBUS backplane
- Backplane power redundancy
Technical Specifications
Input data
| Input Voltage | 24 V DC |
| Input voltage range | 12 V DC ... 24 V DC |
| Current consumption | max. 2 A (24 V DC) |
| Reverse polarity protection | yes |
| Nominal Power Consumption | max. 48 W |
Dimensions
| Width | 25 mm |
| Height | 110 mm |
| Depth | 140 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Conformity/Approvals
| UL, USA / Canada | UL 508 Listed |
| UL, Canada | CSA C22.2 No. 142 |
Standards and Regulations
| Standards/specifications | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/specifications | Dry heat in acc. with IEC 61131-2 |
| Standards/specifications | Damp heat in acc. with IEC 61131-2 |
| Standards/specifications | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/specifications | IEC 61158-2 |
| Standards/specifications | IEC 61000-4-12 |
| Standards/specifications | IEC 60068-2-2 |
| Standards/specifications | IEC 61131-2 |
| Standards/specifications | EN 61131-2 / EN 50178 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
FB-HSB-DP/PA - PROFIBUS DP to PROFIBUS PA coupler system for integration and diagnostics of PROFIBUS PA in PROFIBUS DP. Includes the one-network head station unit (FB-HSB), PROFIBUS DP repeater (FB-DP-RPTR), and PROFIBUS PA interface module with oscilloscope functionality.
Why Proax for Phoenix Contact 2316383?
Proax is an authorized distributor of Phoenix Contact 2316383 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
