2700720
Weight
0.122 kg
Series IB-IL
Connector set - IB IL 24 PSDI 8-PLSET/CP/R

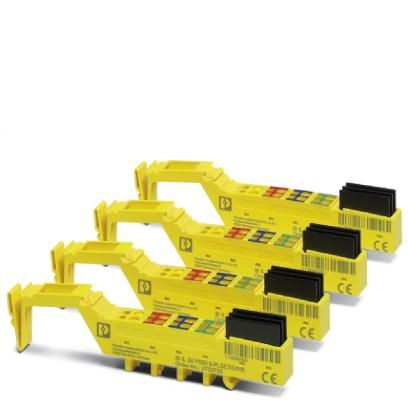

Connector set, consisting of four Inline plugs with integrated discharge electronics
- A total of up to 500 m of cable can be connected
Technical Specifications
Dimensions
| Height | 138 mm |
| Depth | 34 mm |
| Width | 12.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
General
| Application | Inline terminals |
| Weight | 100 g |
Connection data
| Designation | Inline connector |
| Connection Method | Spring-cage connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
