Official DistributorSKU
MPN
IB IL 24 PSDO 8-PLSET/CP/R
Weight
0.119 kg
This product is Not Cancellable/Not Returnable
Series IB-IL

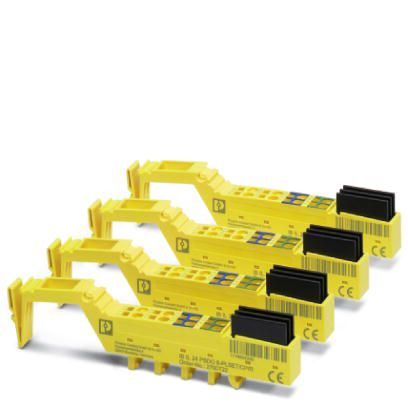

IB IL 24 PSDO 8-PLSET/CP/R - Connector set
Connector set, consisting of four Inline plugs with integrated discharge electronics
- Up to 2.2 uF per output can be connected
Technical Specifications
Dimensions
| Height | 138 mm |
| Depth | 34 mm |
| Width | 12.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
General
| Application | Inline terminals |
| Weight | 100 g |
Connection data
| Designation | Inline connector |
| Connection Method | Spring-cage connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
Standards and Regulations
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 2700722?
Proax is an authorized distributor of Phoenix Contact 2700722 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
