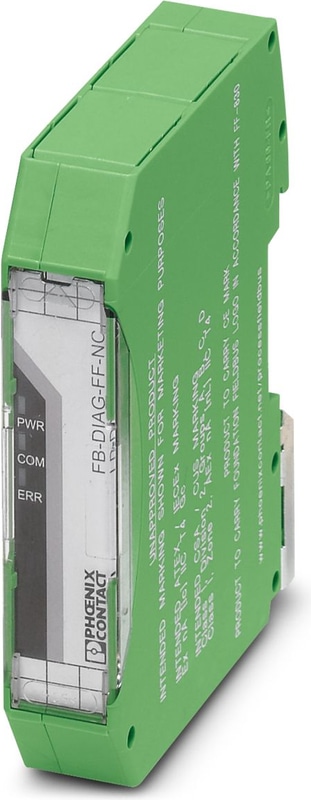

FB-DIAG/FF/NC - Device coupler
Field diagnostic module, includes TBUS connector
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Supply
| Supply Voltage Range | 9 V DC ... 32 V DC |
| Typical current consumption | 27 mA |
| Max. current consumption | 29 mA |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: FOUNDATION Fieldbus
| Connection Method | TBUS |
| Output nominal voltage | ≤ 32 V |
| Output Current | 29 mA |
| Maximum output current | 29 mA |
Dimensions
| Width | 17.7 mm |
| Height | 85 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
Conformity/Approvals
| Conformance | IEC 61158-2 |
| Fieldbus Foundation | FF-830 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NE21 |
Ex data
| ATEX | Sira 13ATEX4148X; II 3G Ex nA IIC T4 Gc |
| IECEx | IECEx SIR 13.0059X; Ex nA IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A,B,C,D; Ex nA IIC T4_GcClass I, Zone 2, AEx nA IIC T4_Gc |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | Any orientation on DIN rail, NS 35, in acc. with EN 60715 |
Accessories
FB-2SP - Device coupler for Foundation Fieldbus and PROFIBUS PA expansions with terminal connections for 2 spurs connected to fieldbus end devices
FB-ISO - Device coupler for Foundation Fieldbus and PROFIBUS PA. Provides intrinsically safe FISCO connection to a single end device.
Isolated Foundation Fieldbus Power Supply with integrated Terminator. Multiple single channel modules can be installed using Phoenix Contacts TBUS connector system reducing wiring and installation costs.
