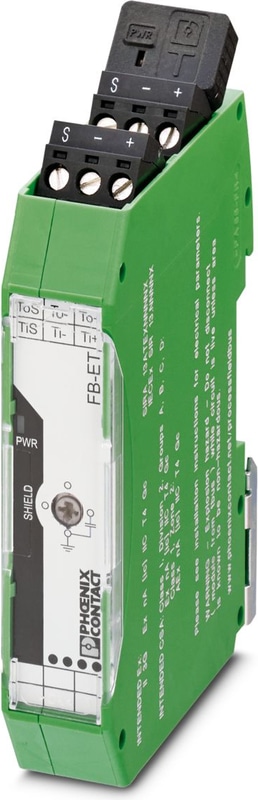

FB-ET - Trunk module
Trunk module for Foundation Fieldbus and PROFIBUS PA expansions with terminator
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Supply
| Supply Voltage Range | 24 V DC ... 32 V DC |
| Nominal Supply Voltage | 24 V DC (IIC) |
| Nominal Supply Voltage | 32 V DC (IIB) |
| Typical current consumption | 8 mA (without termination resistor) |
| Max. current consumption | 12 mA (with terminator) |
Safety data
| Input voltage Ui | 17.5 V (for FB-2SP in a FNICO/FISCO ic system) |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: Foundation Fieldbus and PROFIBUS PA Segment
| Connection Method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | 100 Ω, external removable plug included |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Surge protection | Active if voltage exceeds 39 V (typ.) or 41 V (max.) |
| Voltage drop trunk line / outputs | ≤ 0.2 V |
Dimensions
| Width | 17.5 mm |
| Height | 99.1 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Conformity/Approvals
| Conformance | CE-compliant, additionally EN 61326 |
| IEC | IEC 60529, IEC 61158-2 |
| CSA, USA/Canada | Class I, Zone 2, AEx nA IIC T4 |
| CSA, USA/Canada | Class I, Division 2, Groups A,B,C,D |
| Fieldbus Foundation | FF-846 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NAMUR NE 21 |
Ex data
| ATEX | Sira 08ATEX4302X; II 3G Ex nA IIC T4 GcII 3G Ex ic IIC T4 Gc, FISCO icII 3G Ex nL IIC T4 Gc, FNICO |
| IECEx | IECEx SIR 08.0109X; Ex nA IIC T4 Gc;Ex ic IIC T4 Gc, FISCO ic; Ex nL IIC T4 Gc, FNICO |
| CSA, USA/Canada | Class I, Division 2, Groups A,B,C,D; Ex nA IIC T4Class I, Zone 2, AEx nA IIC T4 |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| Standards/regulations | FF-846 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
