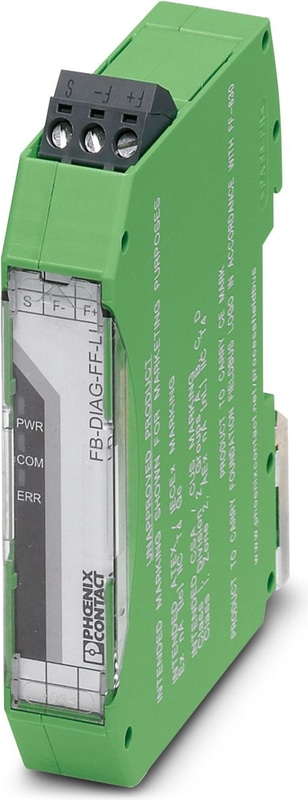

FB-DIAG/FF/LI - Device coupler
Field diagnostics module, legacy installation, includes pluggable side connector
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Supply
| Supply Voltage Range | 9 V DC ... 32 V DC |
| Typical current consumption | 27 mA |
| Max. current consumption | 29 mA |
Safety data
| Input voltage Ui | 32 V DC |
| Input current Ii | 274 mA (IIC) |
| Input current Ii | 570 mA (IIB) |
| Inductance Li | 10 µH |
| Capacitance Ci | 0 µF |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: FOUNDATION Fieldbus
| Connection Method | Pluggable screw connection with test points |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Dimensions
| Width | 17.7 mm |
| Height | 93.9 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
Conformity/Approvals
| Conformance | IEC 61158-2 |
| Fieldbus Foundation | FF-830 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NE21 |
Ex data
| ATEX | Sira 13ATEX4149X; II 3G Ex nA [ic] IIC T4 Gc |
| IECEx | IECEx SIR 13.0060X; Ex nA [ic] IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A,B,C,D; Ex nA nL IIC T4 GcClass I, Zone 2, AEx nA nC IIC T4 Gc |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | Any orientation on DIN rail, NS 35, in acc. with EN 60715 |
