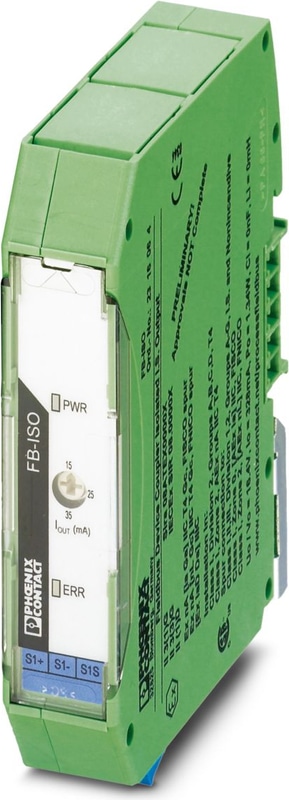

FB-ISO - Device coupler
Device coupler for Foundation Fieldbus and PROFIBUS PA. Provides intrinsically safe FISCO connection to a single end device.
- Field barrier
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Electrical properties
| Electrical isolation | 500 V AC (between input and output, routine test) |
Supply
| Supply Voltage Range | 17 V DC ... 32 V DC (input on trunk line side) |
| Typical current consumption | 10 mA |
Safety data
| Input voltage Ui | 32 V |
| Inductance Li | 10 µH |
| Capacitance Ci | 0 µF |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | / 0.36 µF |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | / 2.11 µF |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | 660 µH |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | 220 µH |
Interfaces
| Signal | PROFIBUS |
| Signal | FOUNDATION Fieldbus |
Data: Foundation Fieldbus and PROFIBUS PA Segment
| Connection Method | Pluggable COMBICON screw connection for each spur |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Output nominal voltage | ≥ 10 V (each spur) |
| Output Current | 15 mA (each spur, adjustable via selector switch) |
| Output Current | 25 mA (each spur, adjustable via selector switch) |
| Output Current | 35 mA (each spur, adjustable via selector switch) |
| Maximum output current | 22 mA (each spur, adjustable via selector switch) |
| Maximum output current | 33 mA (each spur, adjustable via selector switch) |
| Maximum output current | 45 mA (each spur, adjustable via selector switch) |
Dimensions
| Width | 17.5 mm |
| Height | 89.7 mm |
| Depth | 70.4 mm |
Material specifications
| Color | green |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | < 95 % (non-condensing) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Conformity/Approvals
| Conformance | CE-compliant, additionally EN 61326 |
| IEC | IEC 60529, IEC 61158-2 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NAMUR NE 21 |
Ex data
| ATEX | II 3(3) G Ex nA [nL Gc] IIC T4 Gc, FNICO power supply (spur) |
| ATEX | II 3(1) GD Ex nA [ia Ga Da] IIC T4 Gc, FISCO power supply (spur) |
| IECEx | Ex nA [nL Gc] IIC T4 Gc, FNICO power supply (spur) |
| IECEx | Ex nA [ia Ga Da] IIC T4 Gc, FISCO power supply (spur) |
| CSA, USA/Canada | Ex nA [ia] IIC T4 |
Standards and Regulations
| Electrical isolation | 500 V AC (between input and output, routine test) |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| Standards/regulations | VI-7-2 category C, EMC1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Accessories
Isolated Foundation Fieldbus Power Supply with integrated Terminator. Multiple single channel modules can be installed using Phoenix Contacts TBUS connector system reducing wiring and installation costs.
