2316035
Official DistributorSKU
PHX2316035
MPN
FB-PS-25/0.36A
Weight
0.23 kg

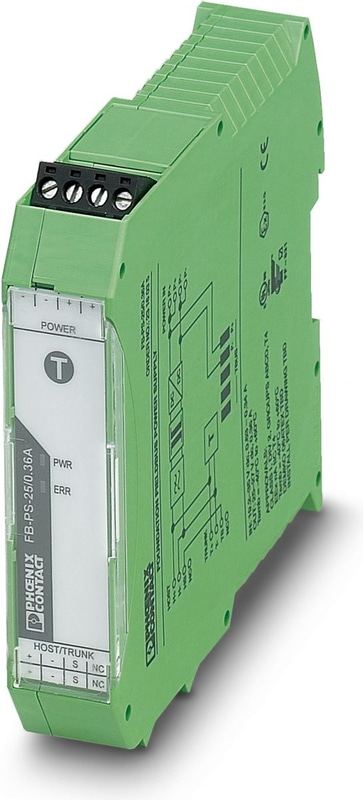

FB-PS-25/0.36A - Power supply
Isolated Foundation Fieldbus Power Supply with integrated Terminator. Multiple single channel modules can be installed using Phoenix Contacts TBUS connector system reducing wiring and installation costs.
Technical Specifications
Input data
| Input Voltage | 24 V DC |
| Nominal input voltage range | 19.2 V DC ... 35 V DC |
| Input voltage range DC | 19.2 V DC ... 35 V DC |
Output data
| Output voltage range | 25 V DC ... 27 V DC (on the trunk) |
| Nominal output current (IN) | 360 mA |
| Output Power | 13.5 W |
| Power dissipation | 2 W (typical) |
Input
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
Output
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
Signal output: Power OK
| Status display | Green LED |
Signal output: OVERLOAD
| Status display | LED red |
Electrical properties
| Electrical isolation | 250 V AC (IEC 62103) |
Insulation characteristics
| Degree of pollution | 2 |
Dimensions
| Width | 22.5 mm |
| Height | 114.5 mm |
| Depth | 108.3 mm |
Mounting
| Mounting Position | horizontal DIN rail NS 35, EN 60715 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Shock | 15g, 11 ms |
| Vibration (Operation) | 1g, 10 Hz ... 150 Hz |
Standards and Regulations
| Electrical isolation | 250 V AC (IEC 62103) |
Standards
| Standards/regulations | IEC 60529, IEC 61158-2 |
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| Standards/specifications | IEC 60529, IEC 61158-2 |
| Standards/specifications | NAMUR NE 21 |
| Standards/specifications | EN 61326, EN 60068-2-27, EN 60068-2-6 |
Conformity/Approvals
| ATEX | II 3 G Ex nA II T4 X |
| IEC | IEC 60529, IEC 61158-2 |
| UL, USA / Canada | Class I, Zone 2, Group IIC T4 |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D, T4 |
| Fieldbus Foundation | FF-831 |
| EN | EN 61326, EN 60068-2-27, EN 60068-2-6 |
| NE | NAMUR NE 21 |
