2316155
Official DistributorSKU
PHX2316155
MPN
FB-PS-MB-TB
Weight
1.125 kg

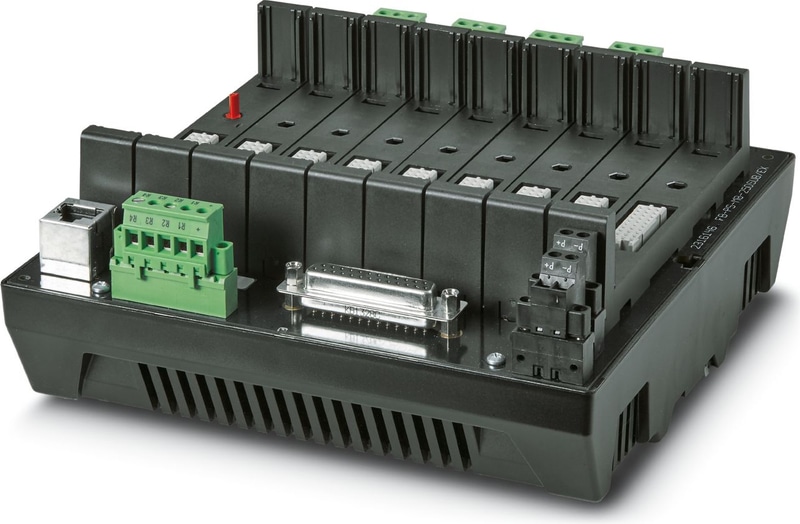

FB-PS-MB-TB - Power supply unit
Four-channel, redundant fieldbus power supply base. Host connection is four terminal blocks.
Documents
Technical Specifications
Signal
| Output name | Alarm |
Supply
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 30 ... 12 |
Data: Terminal block
| Number of Connections | 4 |
| Connection Method | Screw terminal blocks |
Dimensions
| Width | 180 mm |
| Height | 77 mm |
| Depth | 180 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (operation) | 95 % (non-condensing) |
Standards
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326 |
Why Proax for Phoenix Contact 2316155?
Proax is an authorized distributor of Phoenix Contact 2316155 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
