2316148
Official DistributorSKU
PHX2316148
MPN
FB-PS-MB-Y/EX
Weight
1.137 kg

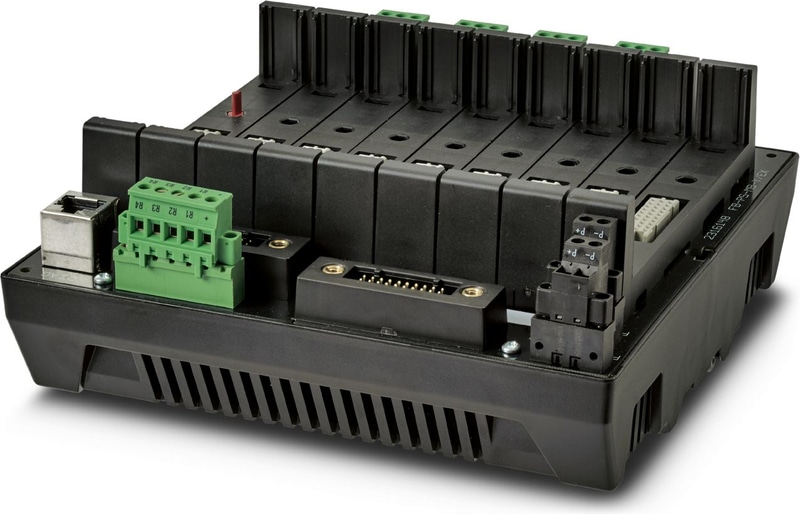

FB-PS-MB-Y/EX - Power supply unit
Four-channel redundant fieldbus power supply base. Host connections are for two Yokogawa AKB336 20-pin cables.
- Built-in relay diagnostics
- Redundancy
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Signal
| Output name | Alarm |
Supply
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 30 ... 12 |
Safety data
| Inductance Li | 17.8 mH (trunk and host) |
| Max. output voltage Uo | 30 V DC (trunk and host) |
Data: Yokogawa DCS cabling system
| Number of Connections | 2 |
| Connection Method | AKB336 cable |
| Tightening torque | 0.4 Nm ... 0.5 Nm (AKB336 cable) |
Dimensions
| Width | 180 mm |
| Height | 77 mm |
| Depth | 180 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Permissible humidity (operation) | 95 % (non-condensing) |
ATEX
| Identification | II 3 G Ex ec nC IIC T4 Gc |
| Certificate | Sira 11ATEX4216X |
IECEx
| Identification | Ex ec nC IIC T4 Gc |
| Certificate | IECEx SIR 11.0097X |
UKCA Ex (UKEX)
| Identification | II 3G Ex ec nC IIC T4 Gc |
| Certificate | PxCAI22UKEx2316132X |
Ex data
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA nC IIC T4Class I, Zone 2, AEx nA nC IIC T4 |
Standards
| Standards/regulations | NE21 |
| Standards/regulations | EN 61326 |
Standards/regulations
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
