Phoenix Contact SAC-5PY-F/2X15,0-920-MS-FS
AllSensors & Machine VisionSensor/actuator cablingCopper Cables
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
1436071
Weight
1.825 kg
Series SAC-5PY

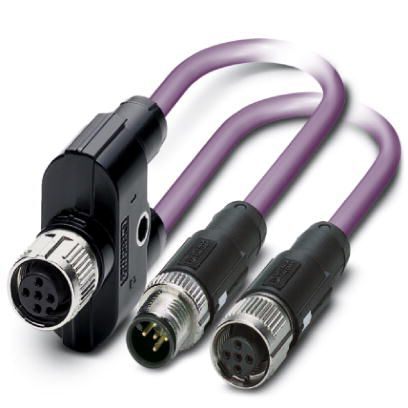

Bus system cable - SAC-5PY-F/2X15,0-920-MS-FS

Bus system cable, CANopen®, DeviceNet™, 5-position, PUR halogen-free, violet RAL 4001, shielded, Socket straight M12 SPEEDCON, coding: A, on Socket straight M12 SPEEDCON, coding: A and Plug straight M12 SPEEDCON, coding: A, cable length: 15 m, all connectors unshielded, Shield connected to pin 1

Technical Specifications

Dimensions

Length of Cable15 m
Center distance21 mm

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 90 °C (Plug / socket)
Ambient Temperature (Operation)-25 °C ... 90 °C (Plug / socket)
Degree of ProtectionIP65
Degree of ProtectionIP67

General

Rated current at 40°C4 A
Rated voltage48 V AC
Rated voltage60 V DC
Number of Positions5
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Signal type/categoryCANopen®
Signal type/categoryDeviceNet™
Status displayNo
Overvoltage categoryII
Degree of pollution3

Material

Flammability rating according to UL 94HB
Contact MaterialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Pin assignment

Contact | Color (signal designation) | Contact (optional)1 (Distributor) = SR (shield) = 1 (Plug) = 1 (Socket)
Contact | Color (signal designation) | Contact (optional)2 (Distributor) = RD (V+) = 2 (Plug) = 2 (Socket)
Contact | Color (signal designation) | Contact (optional)3 (Distributor) = BK (V-) = 3 (Plug) = 3 (Socket)
Contact | Color (signal designation) | Contact (optional)4 (Distributor) = WH (CAN_H) = 4 (Plug) = 4 (Socket)
Contact | Color (signal designation) | Contact (optional)5 (Distributor) = BU (CAN_L) = 5 (Plug) = 5 (Socket)

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101

Cable

Cable TypeCANopen®/DeviceNet™, PUR, violet
Cable type (abbreviation)920
UL AWM style21198 (80°C/300 V)
Cable structure2xAWG24/19+2xAWG22/19
Conductor Cross Section2x 0.25 mm² (Data cable)
Conductor Cross Section2x 0.34 mm² (Power supply)
Conductor Cross Section1x 0.34 mm² (Drain wire)
AWG Signal Line24
AWG Power Supply22
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply19x 0.15 mm
Core diameter including insulation1.95 mm ±0.05 mm (Data cable)
Core diameter including insulation1.4 mm ±0.05 mm (Power supply)
Wire colorsRed-black, blue-white
Twisted pairs2 cores to the pair
Type of pair shieldingPlastic-coated aluminum foil, aluminum side outside
Overall twist2 pairs around a drain wire in the center to the core
ShieldingTinned copper braided shield
Optical shield covering80 %
External cable diameter D6.7 mm ±0.3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles5000000
Bending Radius70 mm
Minimum bending radius, drag chain applications10 x D
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Ambient Temperature (Operation)-20 °C ... 60 °C
Cable weight90 kg/km
External sheath, colorviolet RAL 4001
Outer sheath, materialPUR
Material conductor insulationFoamed PE (Data cable)
Material conductor insulationPE (Power supply)
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km (Data cable)
Insulation resistance≥ 5 GΩ*km (Power supply)
Loop resistance≤ 181.80 Ω/km (Data cable)
Loop resistance≤ 114.80 Ω/km (Power supply)
Cable capacitynom. 40 nF/km (Data cable)
Wave impedance120 Ω ±10 % (with 1 MHz)
Attenuation≤ 22.9 dB/km (with 1 MHz)
Attenuation≤ 16.4 dB/km (At 500 kHz)
Attenuation≤ 9.5 dB/km (At 125 kHz)
Nominal voltage, cable≤ 300 V (Peak value, not for high-power applications)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Other resistanceLow adhesion
Flame resistanceUL 1581, Section 1060 and UL 2556, Section 9.3 (FT1)
Flame resistanceUL 1581, Section 1100 and UL 2556, Section 9.1 (HFT/FT2)
Flame resistanceIEC 60332-1-2
Flame resistancein accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-freein accordance with DIN VDE 0472 part 815
Halogen-freeaccording to IEC 60754-1
Ambient Temperature (Operation)-40 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)-30 °C ... 70 °C (Cable, flexible installation)
Ambient Temperature (Operation)-20 °C ... 60 °C (for installation)
Ambient Temperature (Operation)-20 °C ... 60 °C (cable, drag chain applications)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
