Phoenix Contact 1424458
AllConnectorsHeavy-duty connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
HC-STA-A10PT-BWSC-LS-M20-ELCAL
Weight
0.336 kg
Series HC-STA-A

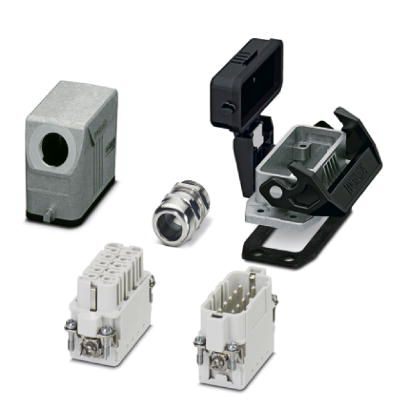

HC-STA-A10PT-BWSC-LS-M20-ELCAL - Connector set

Connector set, number of positions: 10, connection method: Push-in connection, connection cross section: AWG 26- 14

Technical Specifications

General

TypeD15
Connection MethodPush-in connection
Degree of protection for housingIP66
Degree of protection for housingIP67
Connection technologyPush-in connection
Rated voltage (III/3)250 V
Rated surge voltage4 kV
Rated current16 A
Conductor Cross Section0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules)
Connection cross section AWG26 ... 14
External Cable Diameter6 mm ... 12 mm
Ambient Temperature (Operation)-40 °C ... 100 °C
Length of the assembly cutout58 mm
Width of the assembly cutout24 mm
Housing MaterialDie-cast aluminum, salt water resistant
Contact carrier materialPC
Locking latch materialPA
Integrated protective coverYes

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
China RoHSFor details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Why Proax for Phoenix Contact 1424458?

Proax is an authorized distributor of Phoenix Contact 1424458 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
